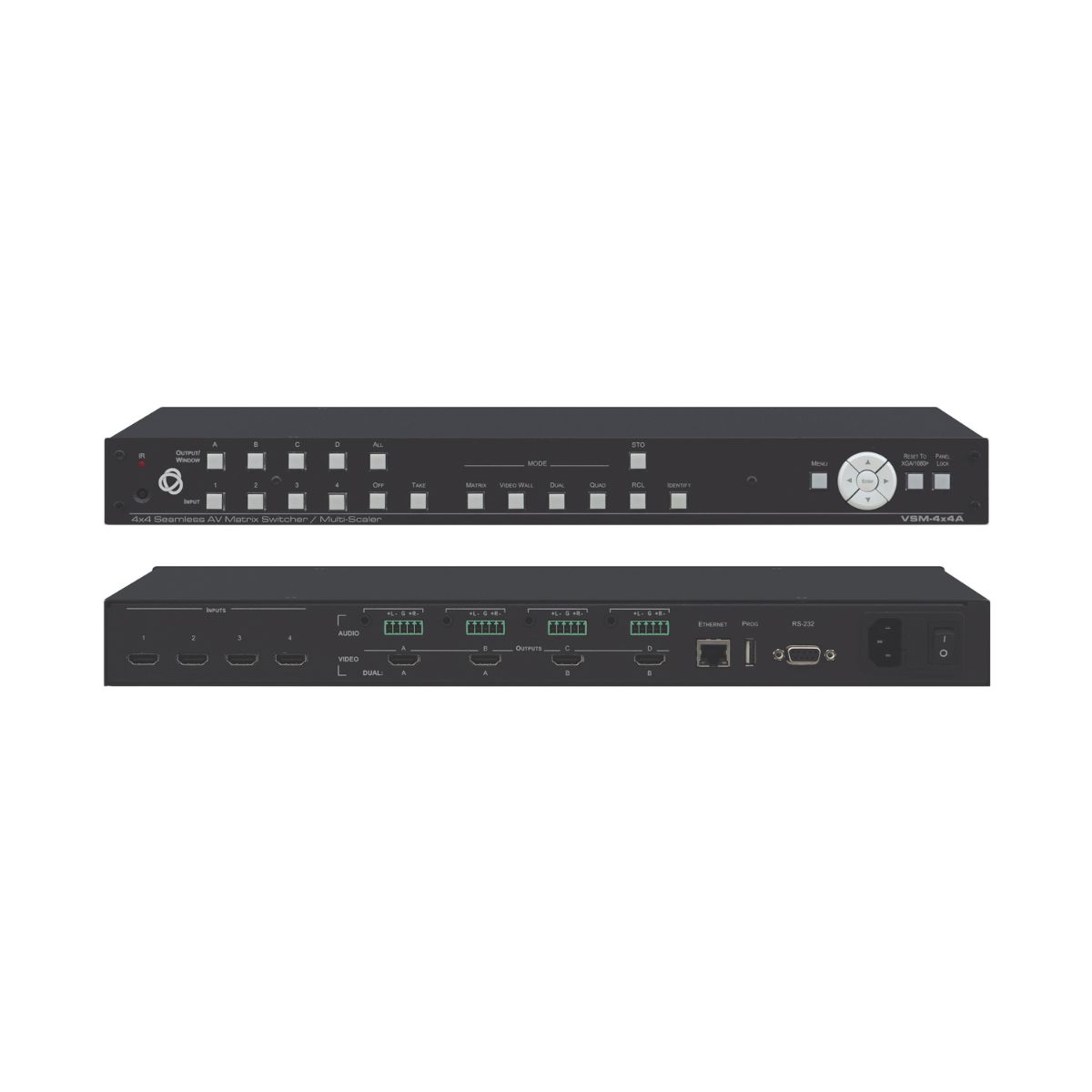

VSM-4x4A

VSM−4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multi−viewers. The unit enables switching between inputs with a clean video cut (frame−to−frame switching with no glitches). It supports HDMI resolutions with deep color, up to eight channels of audio, and includes per−port HDCP and EDID settings.

Contact to Seller
  • PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology.
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  4 HDMI Inputs & 4 Scaled HDMI Outputs.
  •  Audio — 4 balanced and 4 unbalanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
  •  Selectable Operation Modes — 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display.
Download Product catalog

INPUTS
  • 4 HDMI connectors (HDMI, HDCP version 1.1)

OUTPUTS
  • 4 HDMI connectors (HDMI, HDCP version 1.1), 4 balanced stereo audio on terminal block connectors, 4 unbalanced audio on 3.5mm mini jacks

PORTS
  • 1 RS–232 on 9–pin connector, 1 Ethernet on RJ–45 connector, 1 USB on Type–A connector

OUTPUT RESOLUTIONS
  • NATIVE, 480p, 576p, 720p50, 720p59, 720p60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1680x1050 or 1920x1200

VIDEO LATENCY
  • Progressive input: 30ms (typical)

CONTROLS
  • Front panel buttons, IR with customized remote control, RS–232, Ethernet with built–in Web pages, USB port for programming
