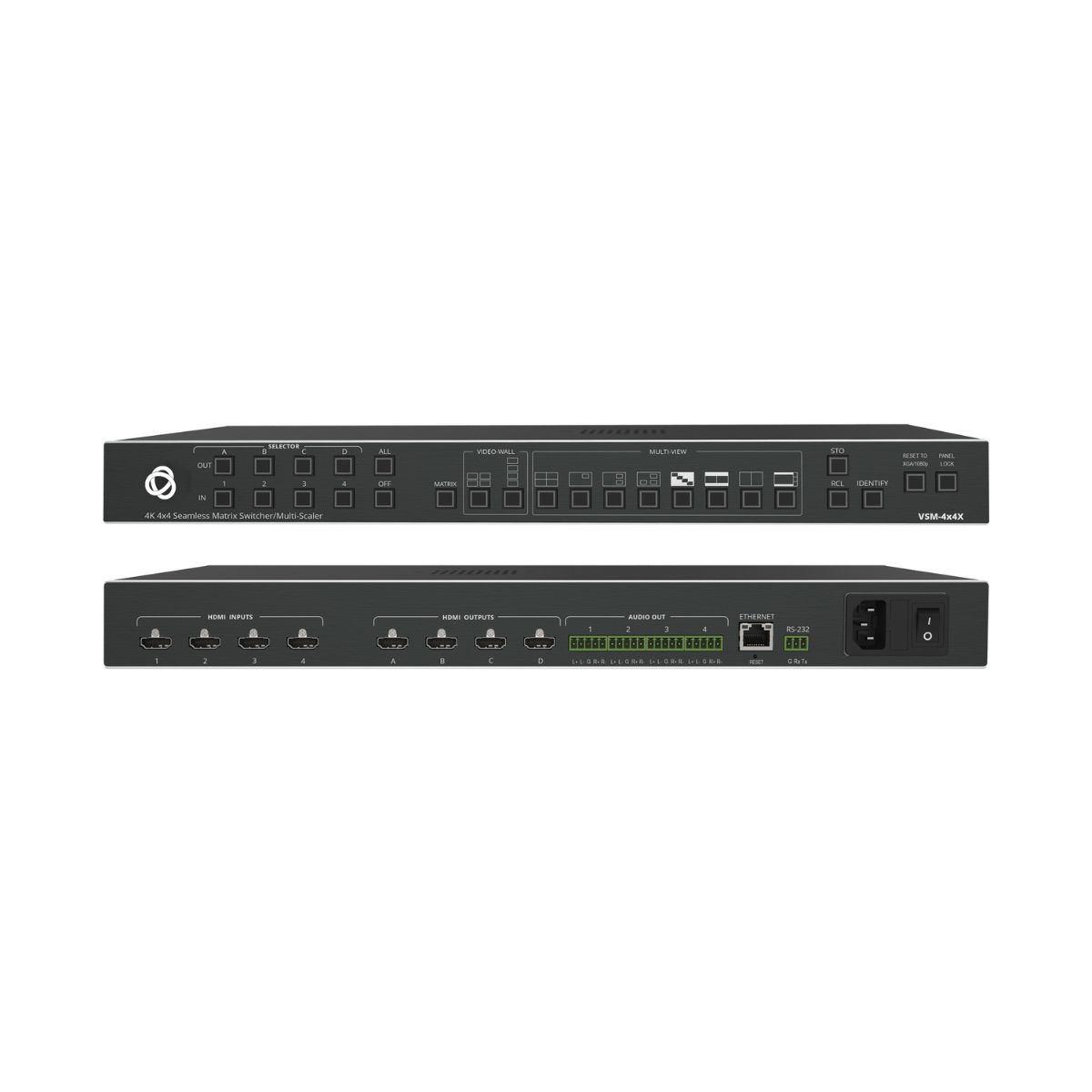

VSM-4X4X

Kramer's VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad−viewer, or a 4-picture multi−viewer.

Contact to Seller
  • Modes — Seamless 4X4 matrix, video wall, multi–viewer (PIP(s), P&P(s), quad, etc)
  • Bezel Correction — In video wall mode
  • Max Resolutions — 4k60 4:4:4
  • Built–in ProcAmp
  • Control — RS–232, Ethernet
Download Product catalog

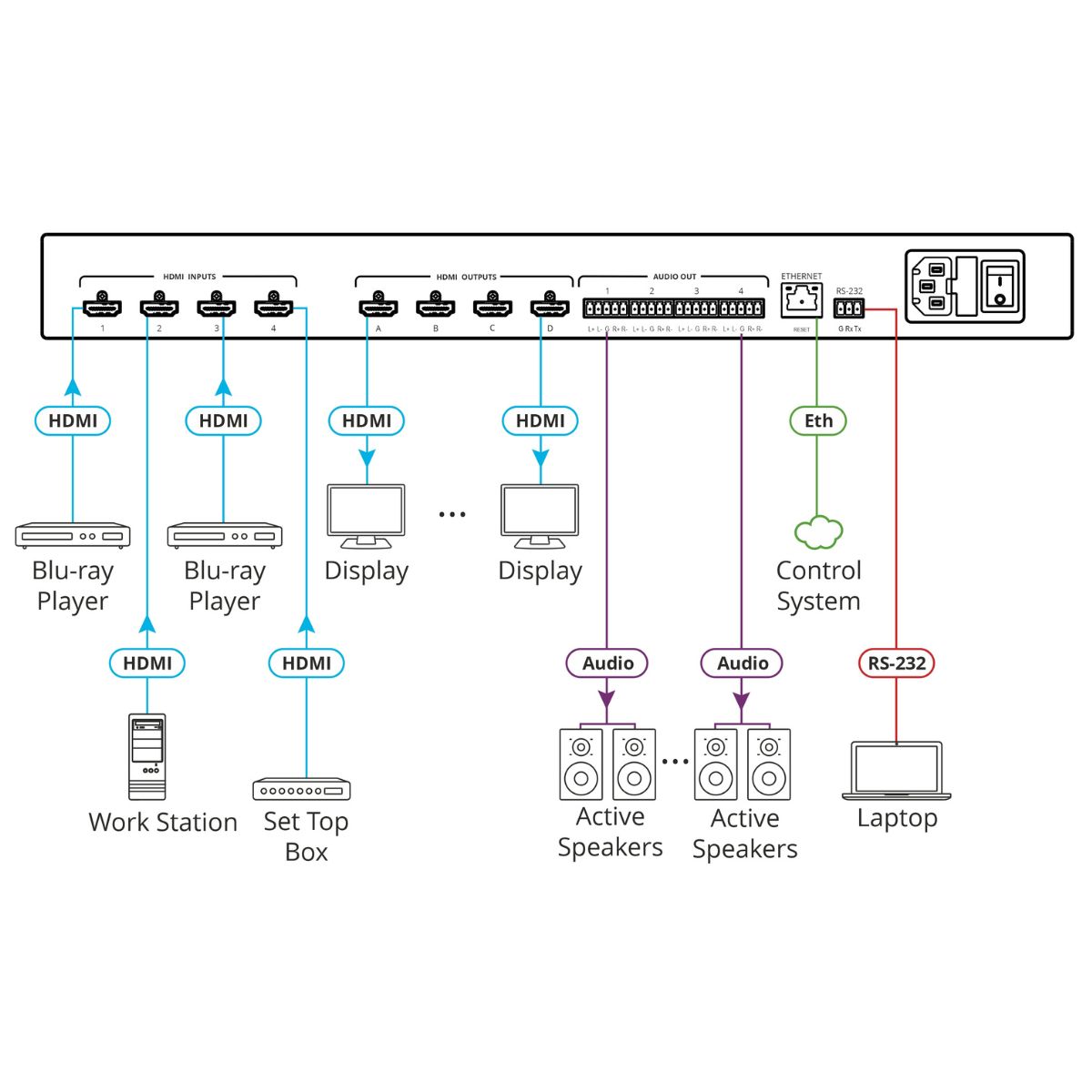

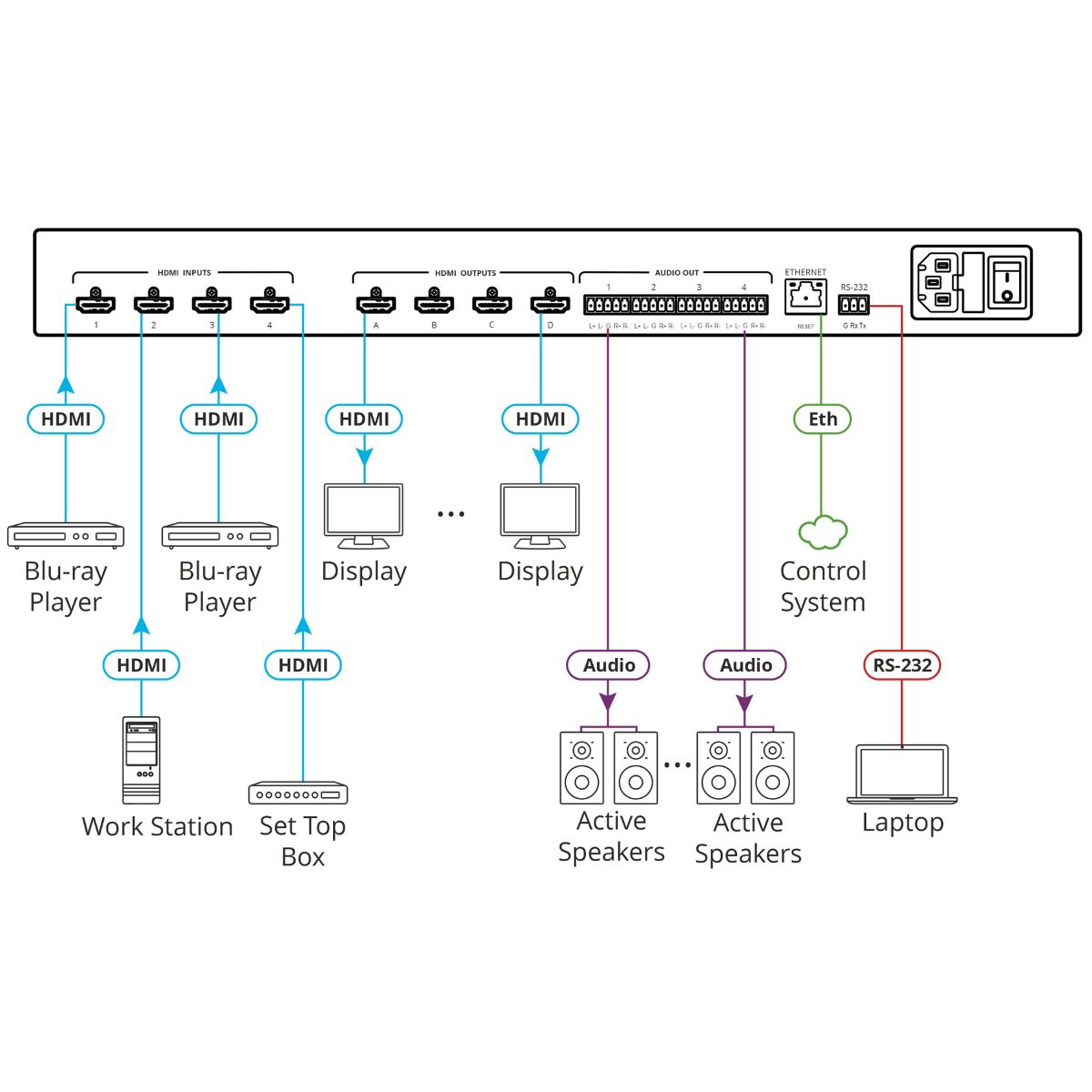

Inputs
  • 4 HDMI: On female HDMI connectors

Outputs
  • 4 HDMI: On female HDMI connectors

Ports
  • 4 Balanced Stereo Line Level: On 5–pin terminal block connectors
  • 1 RS-232: On a 3–pin terminal block
  • 1 Ethernet: On an RJ–45 female connector

Video
  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)
  • Max Resolution: 4K @60Hz (4:4:4) 24bpp resolution
  • Compliance: HDMI 2.0 and HDCP 2.2
  • Latency: Up to 20ms

Controls
  • Front Panel: Output and input selector buttons, system setup buttons (matrix, video wall, and multi–view), store and recall buttons, display identify button, reset button, and panel lock button

Analog Audio
  • Max Level: 4.1Vrms
  • Impedance: 500Ω
  • Bandwidth: 20Hz — 20kHz
  • Crosstalk: –114dB
  • THD + N: 0.005% @1kHz at nominal level
  • S/N Ratio: –89dB, 20Hz — 20kHz
  • Coupling: DC
