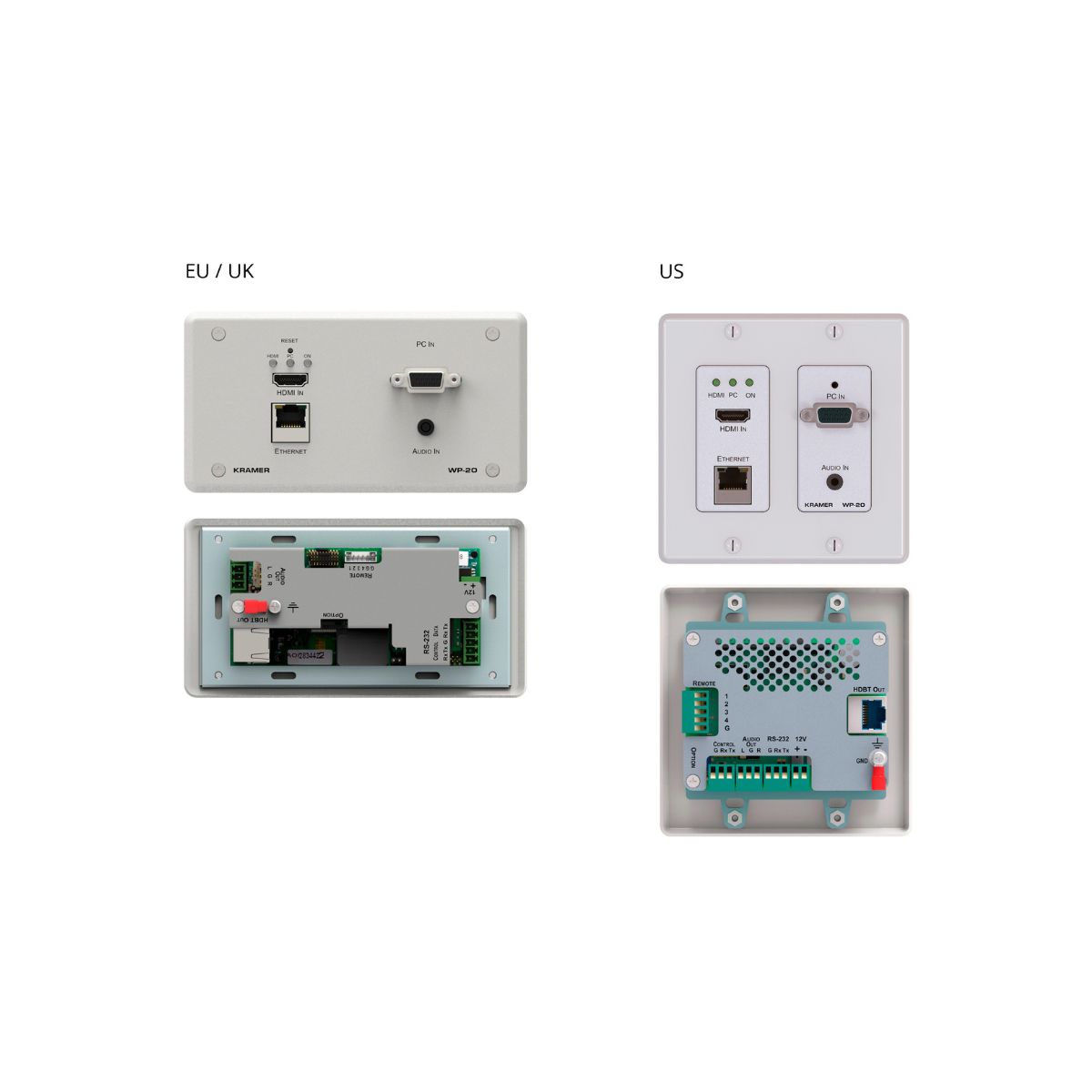

WP-20

WP 20 is a high−performance, 4K, multi−format, wall−plate switcher and transmitter over extended−reach HDBaseT. Offering intelligent Maestro automation, with priority and last−connected switching options, it automatically switches and operates the room according to the selected switching scheme based on active video signal detection.

Contact to Seller
  • 2x1 BYOD Plug and Play Wall–mounted Switching
  • Built–in intelligent Maestro Room Automation
  • Up to 4K@60Hz (4:2:0) Resolution
  • Up to 100m (330ft) standard HDBaseT Extension
  • PoE acceptor

Inputs
  • 1 HDMI: On the HDMI connectors
  • 1 VGA: On a 15–pin HD (F) connector
  • 1 Unbalanced Stereo Audio 1V RMS (nominal): On a 3.5mm jack

Outputs
  • 1 HDBaseT: On an RJ–45 connector
  • 1 Unbalanced Stereo Audio 1V RMS (nominal): On a 3.5mm jack

Ports
  • 1 RS-232: On a 3–pin terminal block for serial link extension
  • 1 RS−232: On a 3–pin terminal block for device serial control

Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0) 24bpp resolution

Extension Line
  • Up to 100m (330ft): At 4K@60Hz (4:2:0)
  • Up to 130m (430ft): At full HD (1080p @60Hz 36bpp)

Audio
  • Max. Level: 3.1 Vpp
  • THD: 0.013%
  • SNR: –70dB
