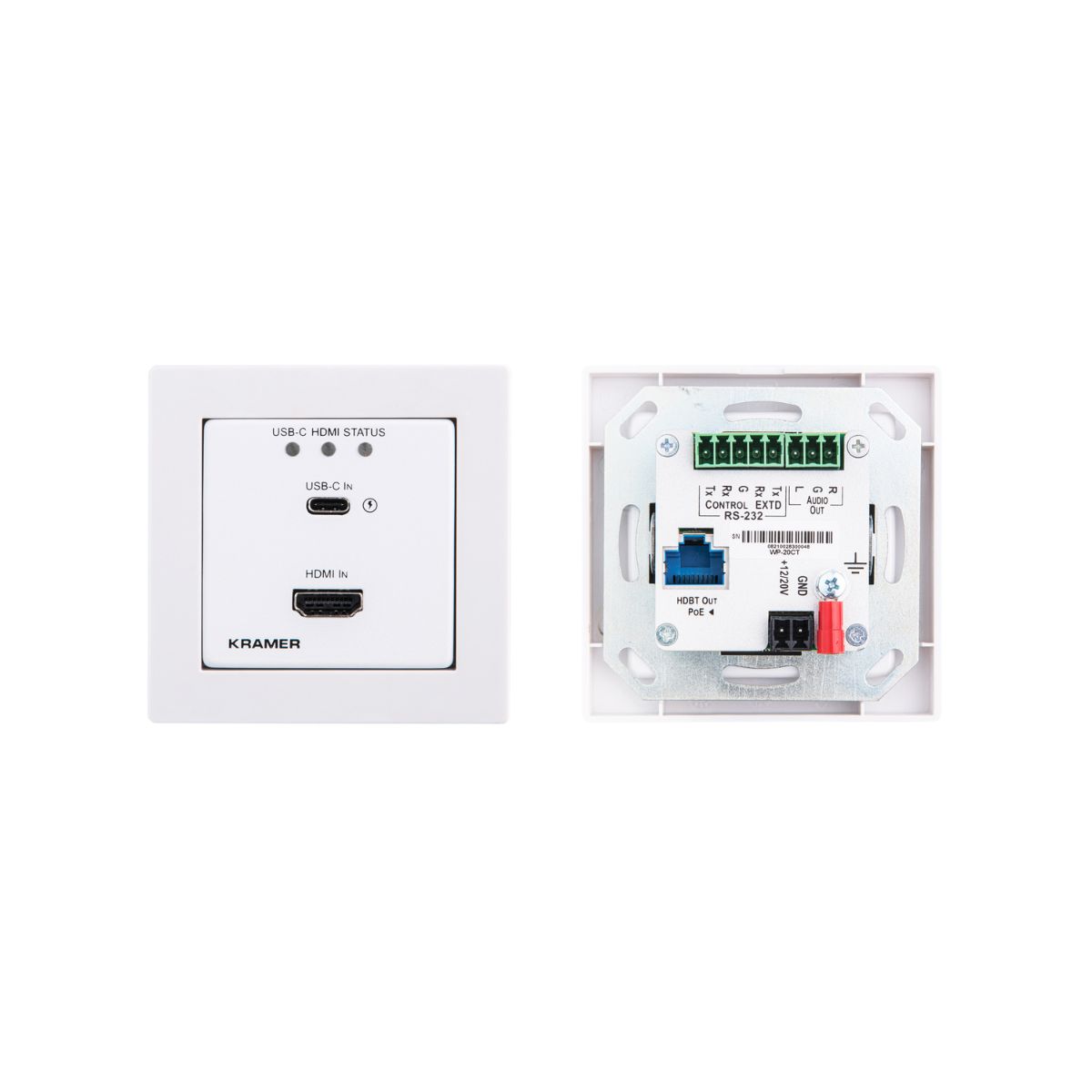

WP-20CT

WP 20CT is is an intelligent 2x1 automatic wall−plate switcher transmitter over long−reach HDBaseT for 4K USB−C and HDMI video signals. WP 20CT offers an intelligent switching experience with built−in Maestro room control and the standard priority / last−connected switching function based on active video signal detection.

Contact to Seller
  • 2x1 USB–C & HDMI Plug & Play wall–mounted Switcher
  • Built–in intelligent Maestro Room Control
  • Up to 60W USB–C charging with the optional PS–2006–0 20V power supply
  • PoE acceptor
Download Product catalog

Inputs
  • 1 DP Alt Mode & PD 3.0 USB-C: On a USB type–C connector
  • 1 HDMI: On the HDMI connector

Outputs
  • 1 HDBaseT: On an RJ–45 connector
  • 1 Unbalanced Stereo Audio: On 3–pin terminal block connector

Ports
  • 1 RS-232: On a 3–pin terminal block for serial link extension
  • 1 RS-232: On a 3–pin terminal block for device serial control
  • 1 DC Power Input: On a two pin terminal block connector

Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0) 24bpp resolution
  • HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS HD, 2K, 4K, and 3D as specified in HDMI 2.0
  • Compliance: HDCP 2.3 & 1.4

Extension Line
  • Up to 40m (130ft): At 4K @60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables
  • Compliance: HDBaseT 1.0

Extended RS-232
  • Baud rate: 300 to 115200
