WP-211T

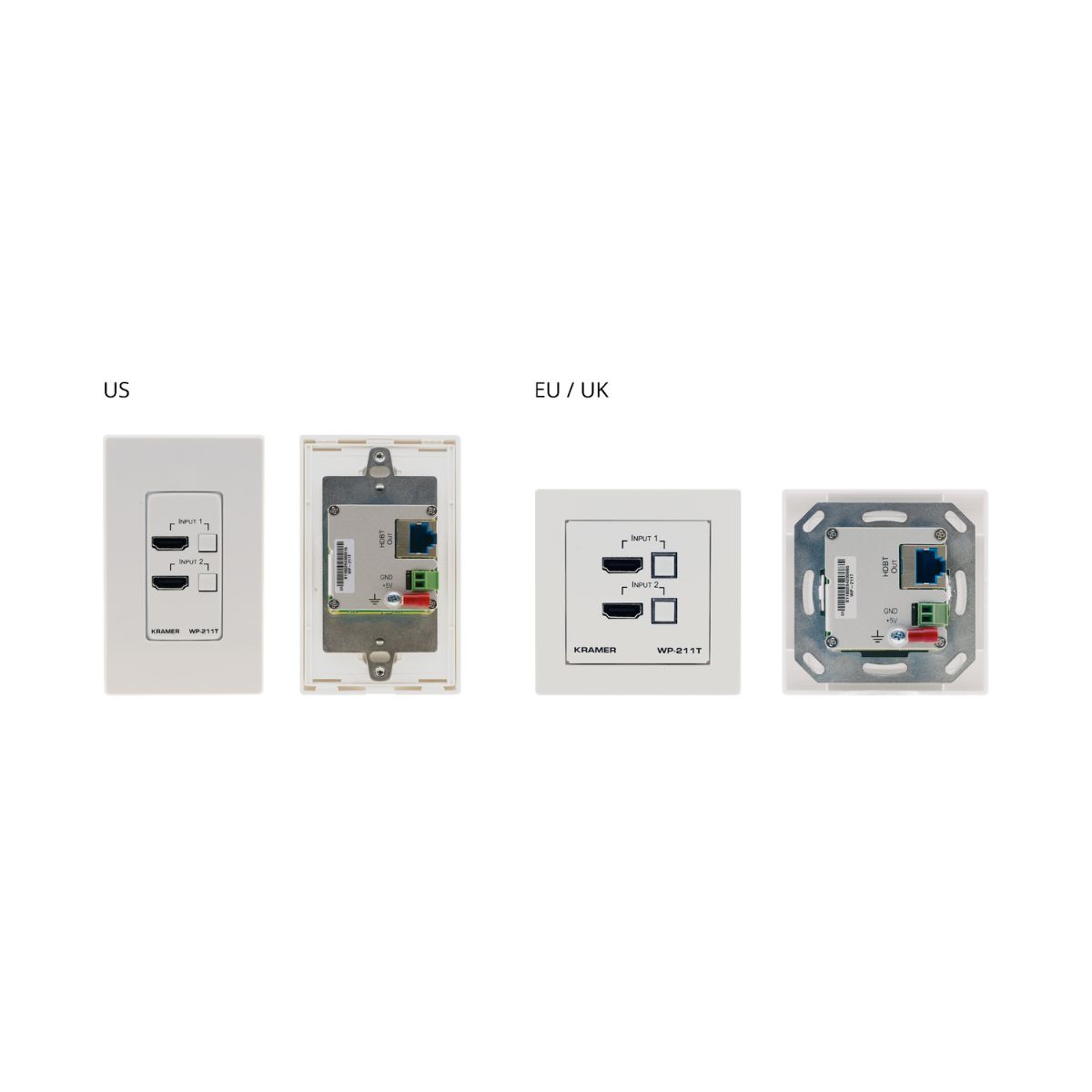

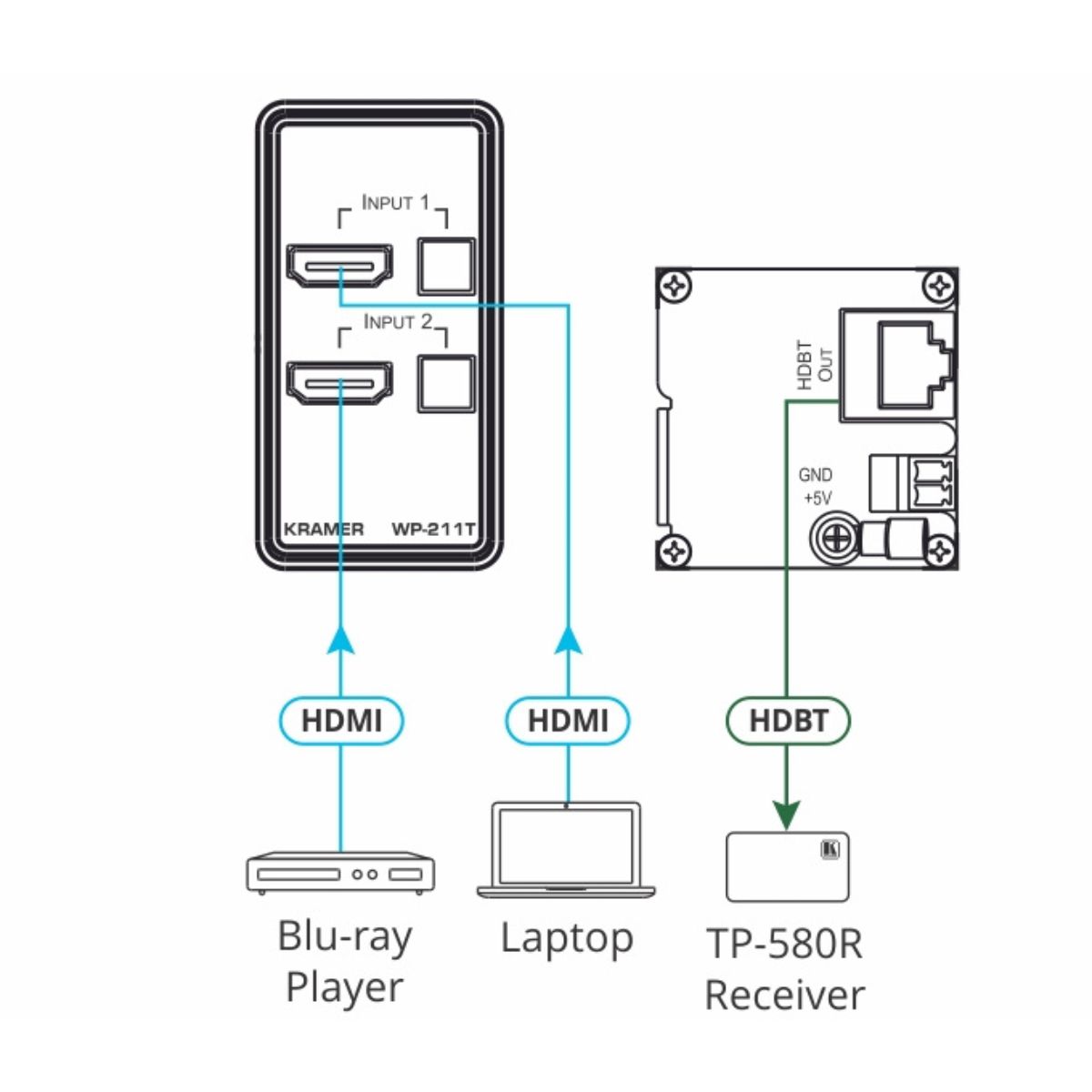

WP−211T is a high−performance PoE−powered wall−plate automatic switcher of 4K HDMI video signals, transmitted over long−reach HDBaseT extension link. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Contact to Seller
  • 2x1 Plug and Play Wall–mounted Switching
  • Up to 4K@60Hz (4:2:0) Resolution
  • Up to 70m (230ft) Reach
Download Product catalog

Inputs
  • 2 HDMI: On female HDMI connectors

Outputs
  • 1 HDBaseT: On an RJ–45 connector

Video
  • Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0)
  • Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)

Extension Line
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p @60Hz 36bpp)
  • Up to 70m (230ft): :
  • Note: When using Kramer HDBaseT cables
  • Compliance: HDBaseT 1.0

User Interface
  • Controls: Panel buttons, and last connected/priority DIP switches

Power
  • Source: 5V DC
  • PoE: Acceptor
  • Consumption: 780mA
  • Consumption with PoE: 9 watts
