WP-2UT/R-KIT

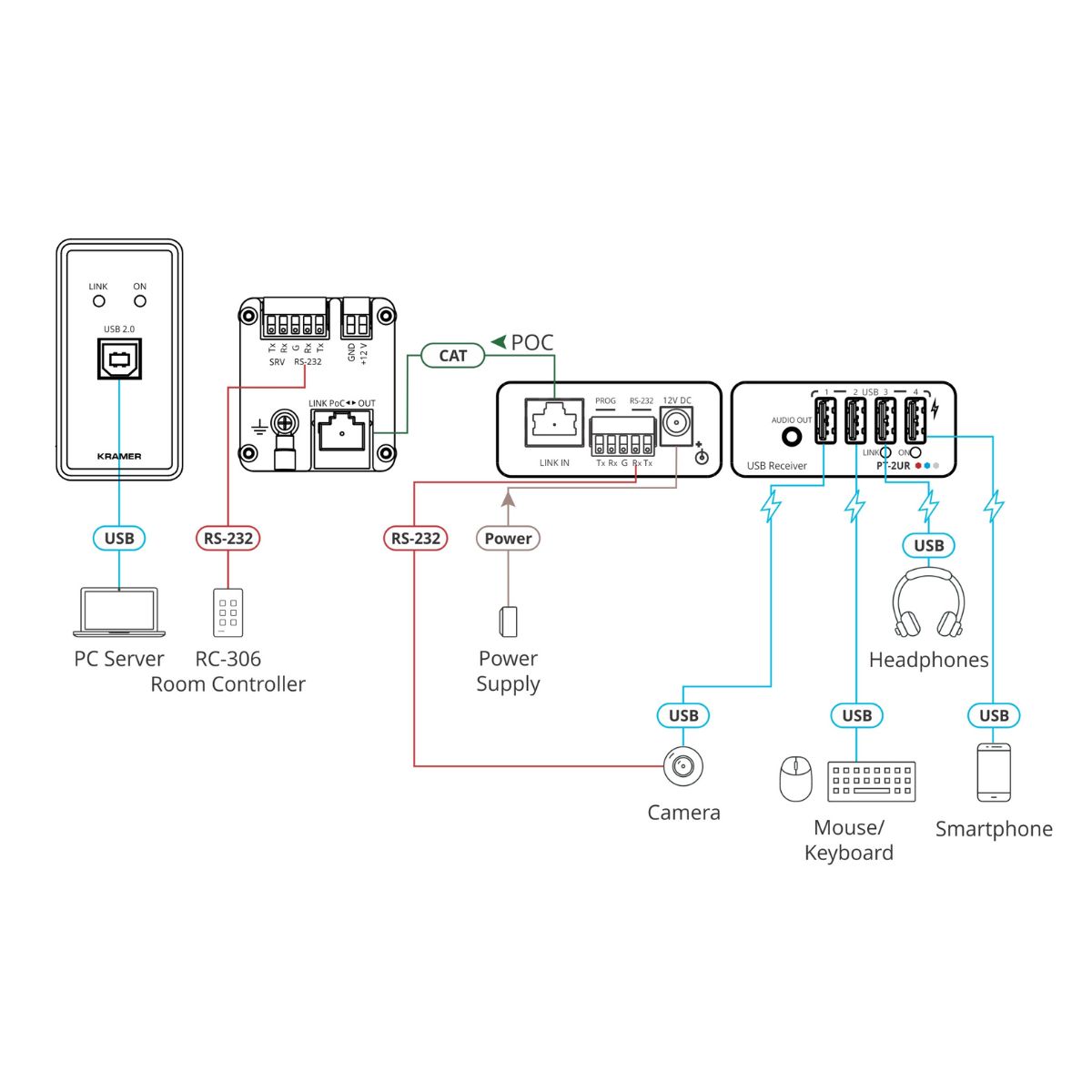

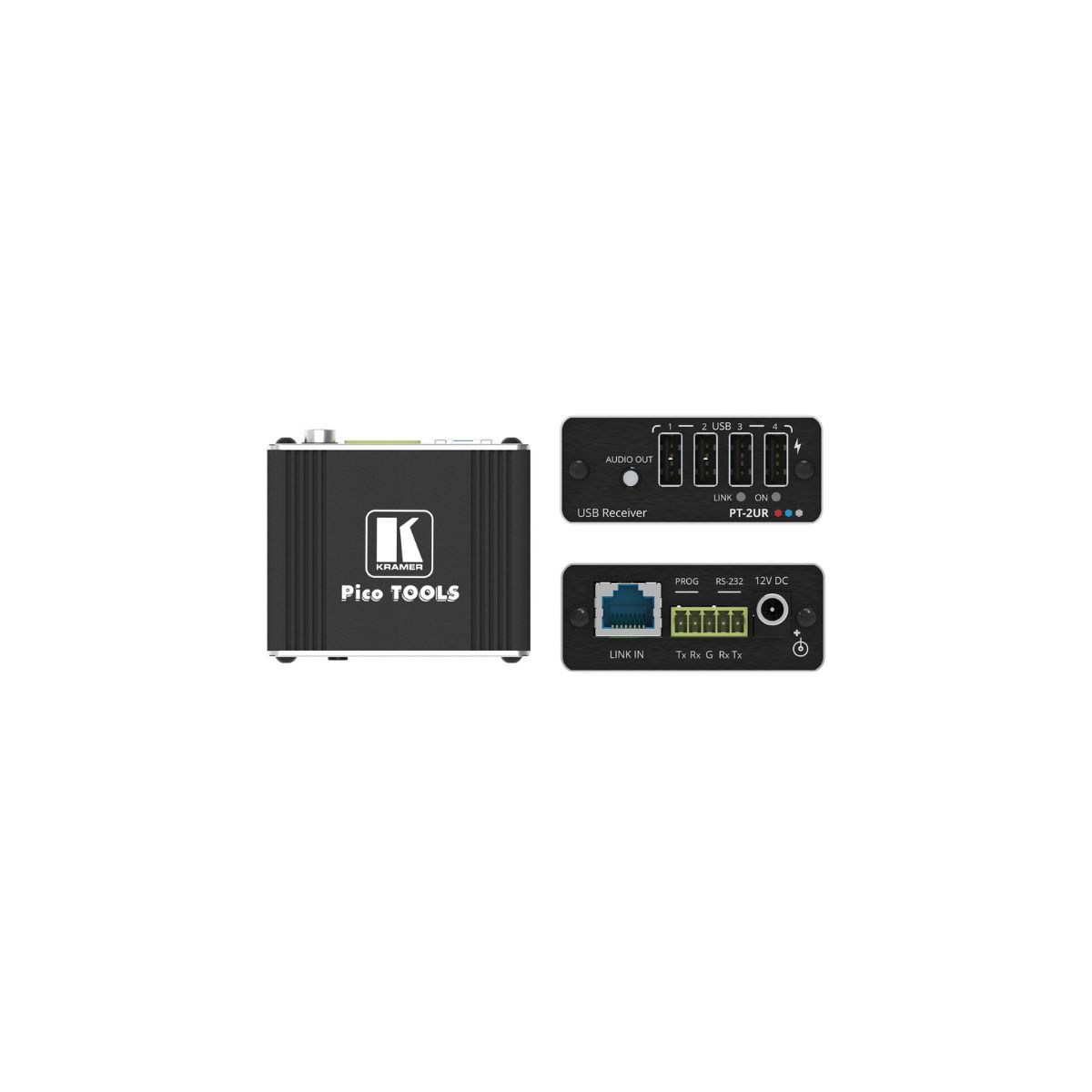

WP−2UT/R−KIT is a comprehensive, extended−reach CAT extender kit for USB 2.0, RS−232 and 2−way powering over twisted pair. WP−2UT/R−KIT includes a wall−plate transmitter and compact, mountable receiver. The WP−2UT wall−plate transmitter converts the USB input signal into a CAT signal. The PT−2UR receiver converts the transmitted CAT signal into a USB signal.

Contact to Seller
  • 1–Gang wall–plate transmitter
  • 4–port USB 2.0 100m (330ft) extender kit
  • Fast remote device charging
  • Two–way powering
Download Product catalog

Inputs
  • 1 CAT: On an RJ–45 female connector for extension line (PT–2UR)

Outputs
  • 1 CAT: On an RJ–45 female connector for extension line (WP–2UT)

Ports
  • 1 USB: On a USB–B female connector for USB host extension (WP–2UT)
  • 4 USB: On USB–A female connectors for USB devices extension (PT–2UR)
  • 1 RS–232: On a 3–pin terminal block connector for serial link extension

USB Features
  • Integrated USB Hubs: Rx: 1wp–2ut

Extended USB
  • Data Rate: Up to 480Mbps
  • Transmitted Data Bandwidth: Up to 300Mbps
  • Standards Compliance: USB 1.1 and 2.0

Extension Line
  • Reach Using Shielded UNIKAT Cables: Up to 100m (330ft)
  • Reach Using CAT 5e Cables: Up to 30m (100ft)
  • Baud Rate: 9600
