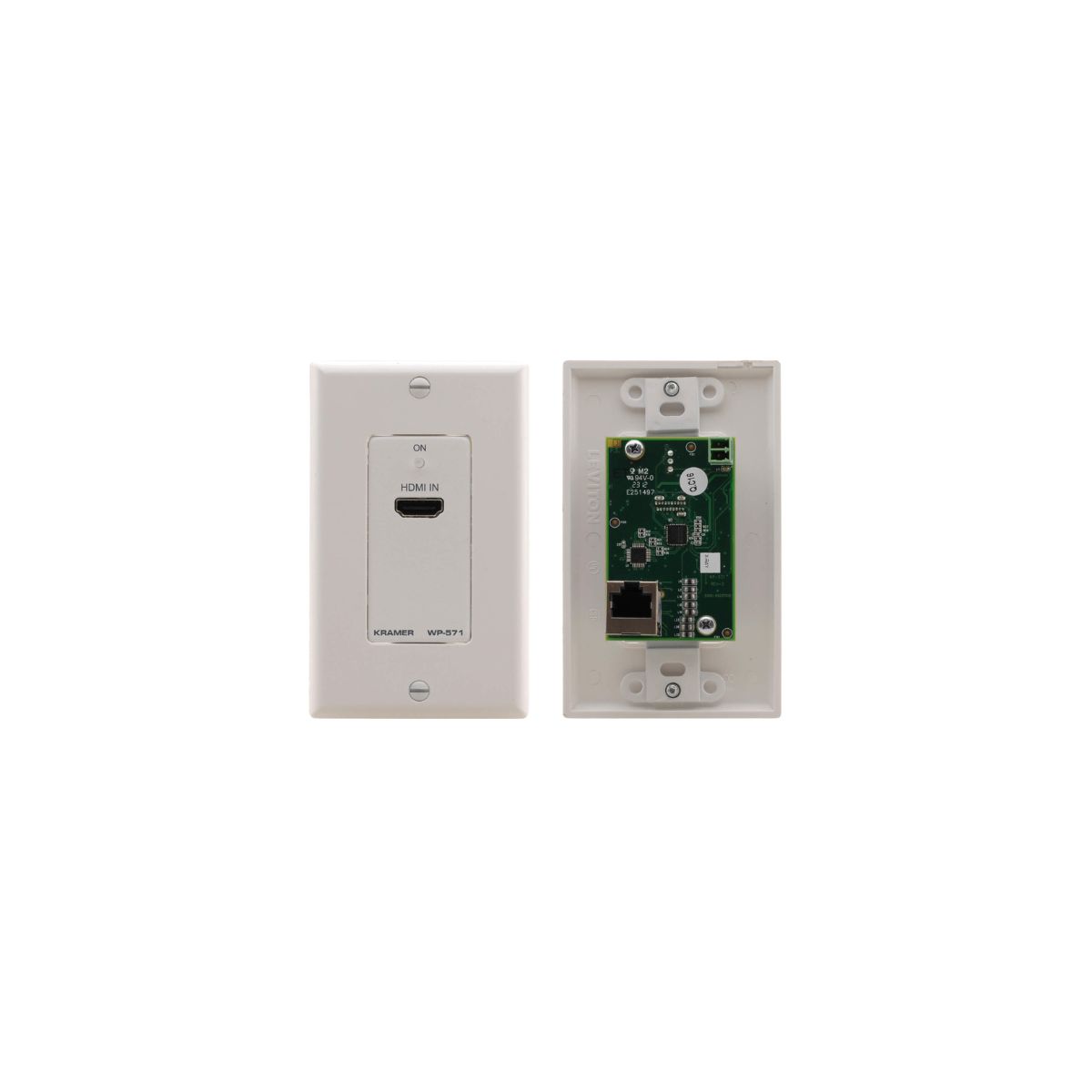

WP-571

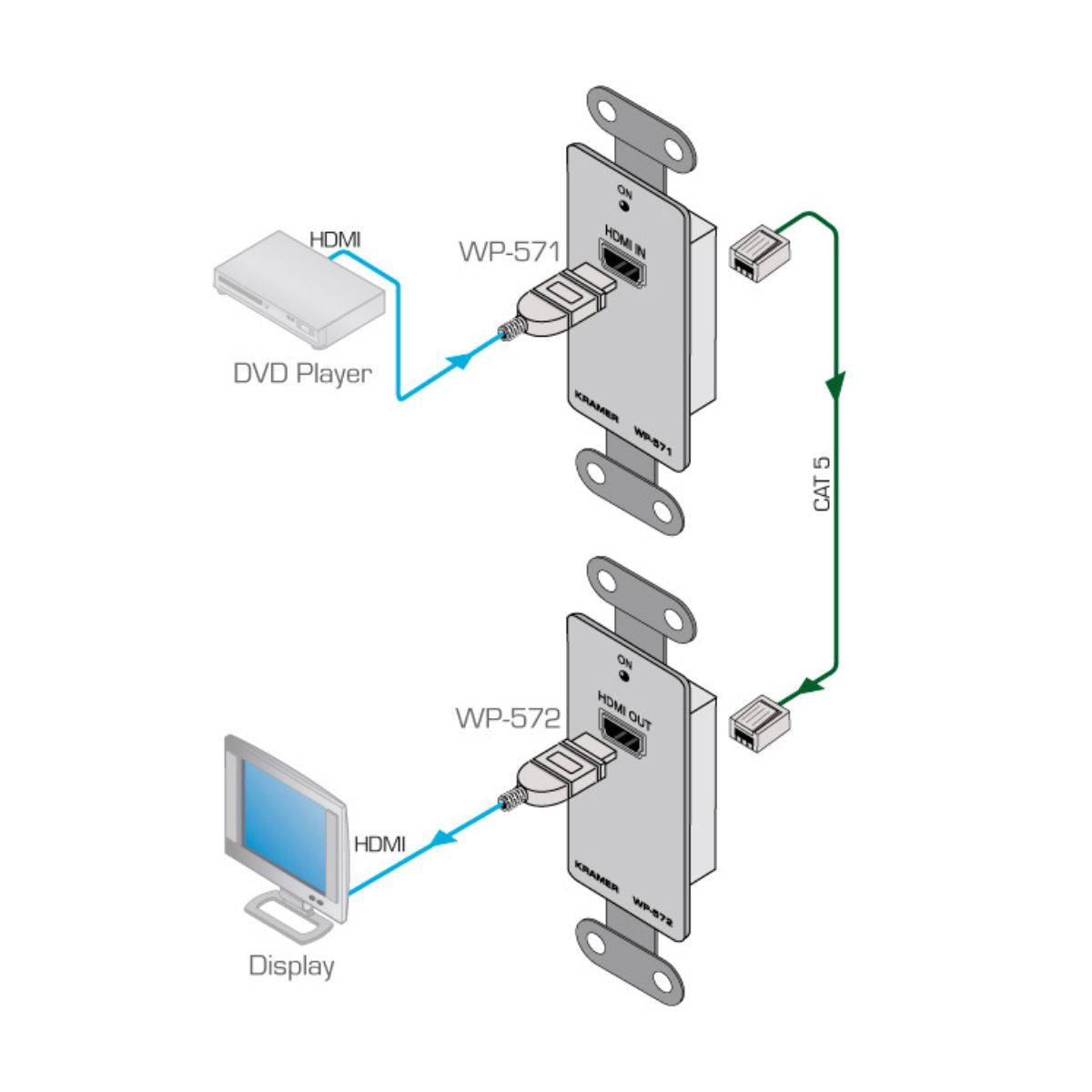

The WP−571 is a PoC DGKat™ wall plate transmitter for HDMI signals. The WP−571 converts an HDMI signal to a DGKat™ twisted pair signal that it transmits to a WP−572.

Contact to Seller
  •  Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  •  HDMI Support — HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
  •  3D Pass–Through.

INPUTS

  • 1 HDMI connector

OUTPUTS

  • 1 DGKat™ twisted pair on an RJ–45 connector

BANDWIDTH

  • Up to 4.95Gbps data rate (1.65Gbps per graphics channel)

COMPLIANCE WITH HDMI STANDARD

  • Supports HDMI and HDCP

POWER CONSUMPTION

  • US: 12V DC, 190mA (single device)
  • 360mA total (when one device supplies the power to both devices). UK, BG: 12V DC, 150mA (single device)
  • 310mA total (when one device supplies the power to both devices)

INCLUDED ACCESSORIES

  • Power supply
