WP-572

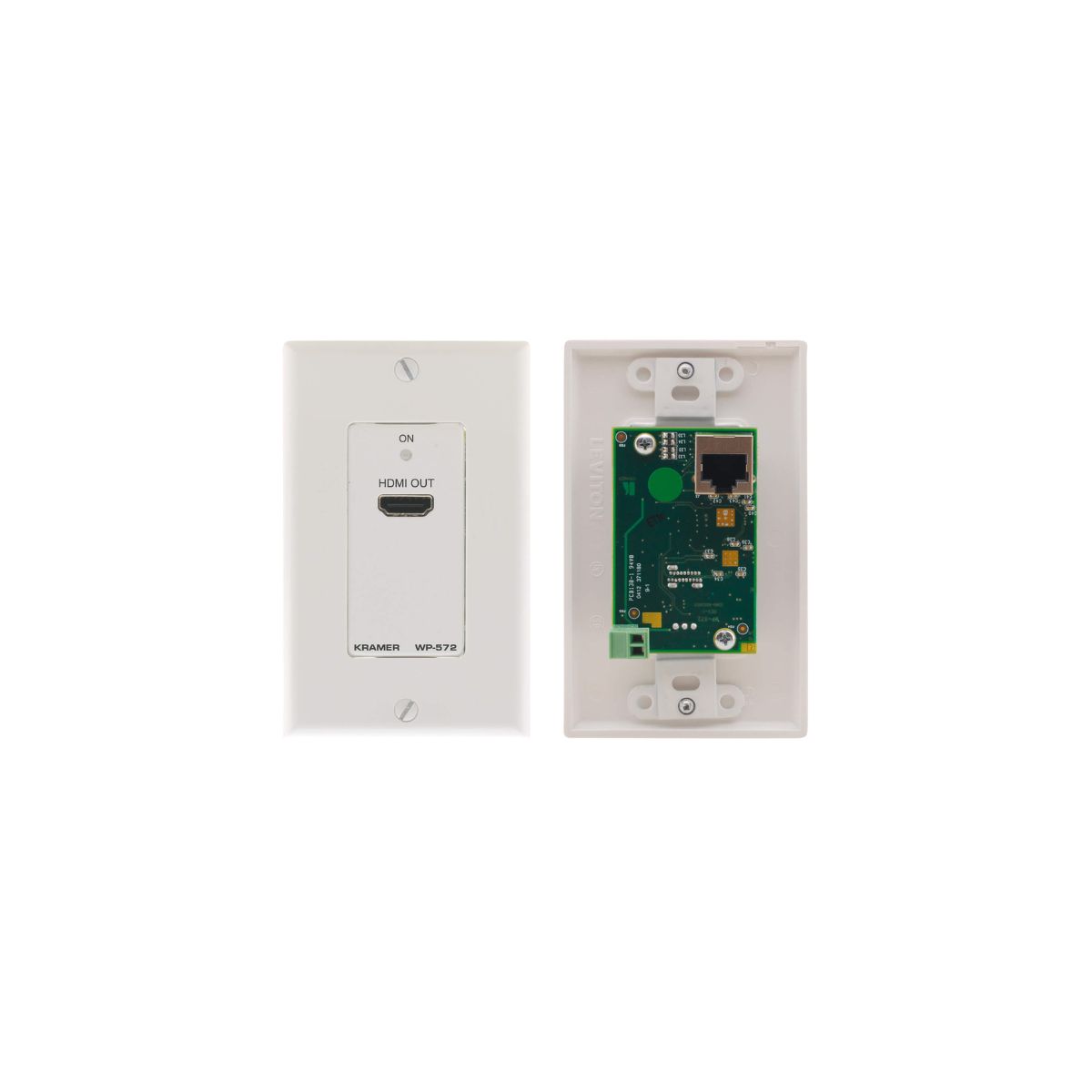

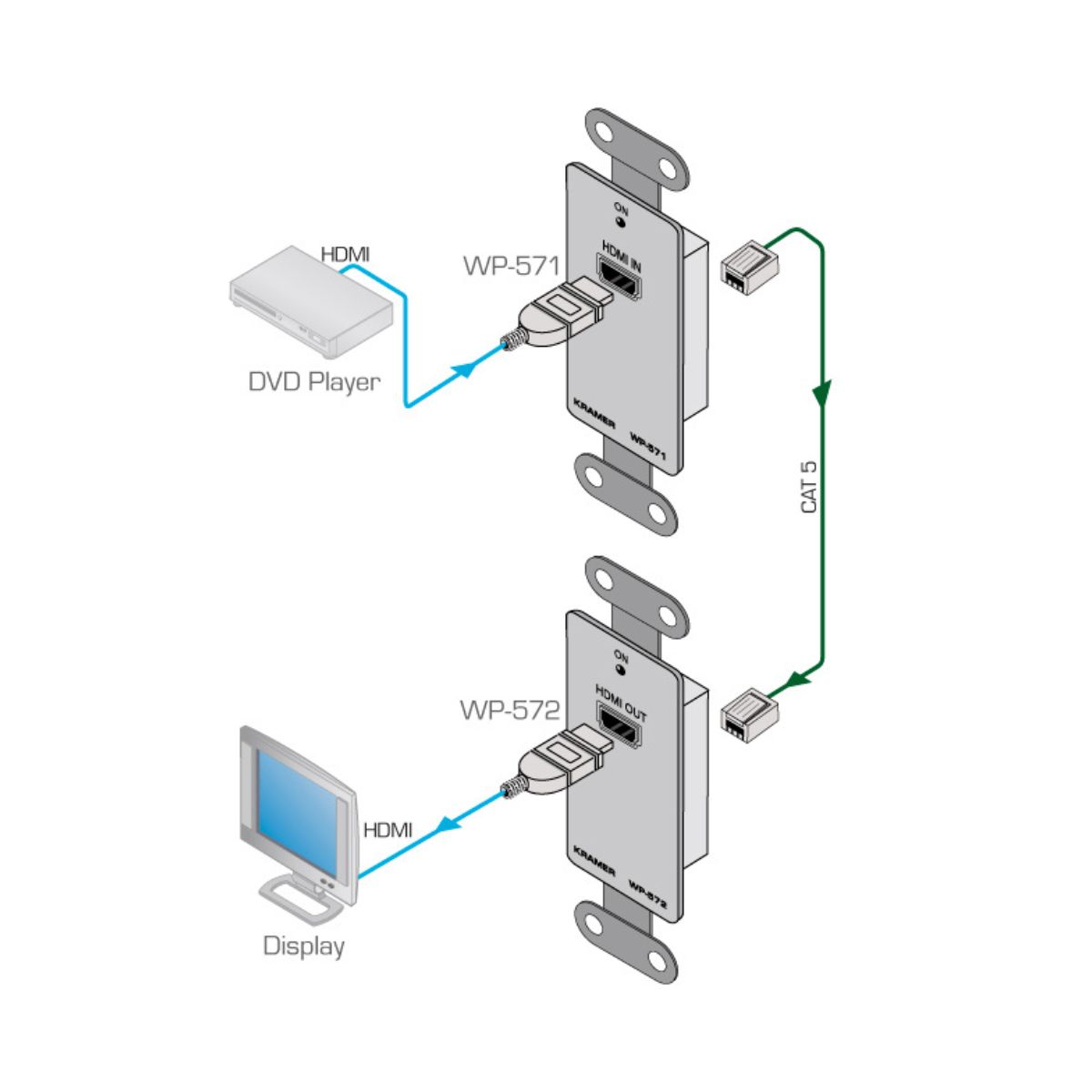

The WP−572 is a PoC DGKat™ twisted pair receiver for HDMI signals. The WP−571 converts an HDMI signal to a single twisted pair signal, and the WP−572 converts the twisted pair signal back to an HDMI signal.

Contact to Seller
  •  Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP Compliant.
  •  DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  •  HDMI Support — x.v.Color™, up to 7.1 Uncompressed Audio Channels.
  •  3D Pass–Through.

INPUTS
  • 1 DGKat™ twisted pair on an RJ–45 connector

OUTPUTS
  • 1 HDMI connector

BANDWIDTH
  • Up to 4.95Gbps data rate (1.65Gbps per graphics channel)

COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP

POWER CONSUMPTION
  • US: 12V DC, 190mA (single device)
  • 360mA total (when one device supplies the power to both devices). UK, BG: 12V DC, 150mA (single device)
  • 310mA total (when one device supplies the power to both devices)

INCLUDED ACCESSORIES
  • Power supply
