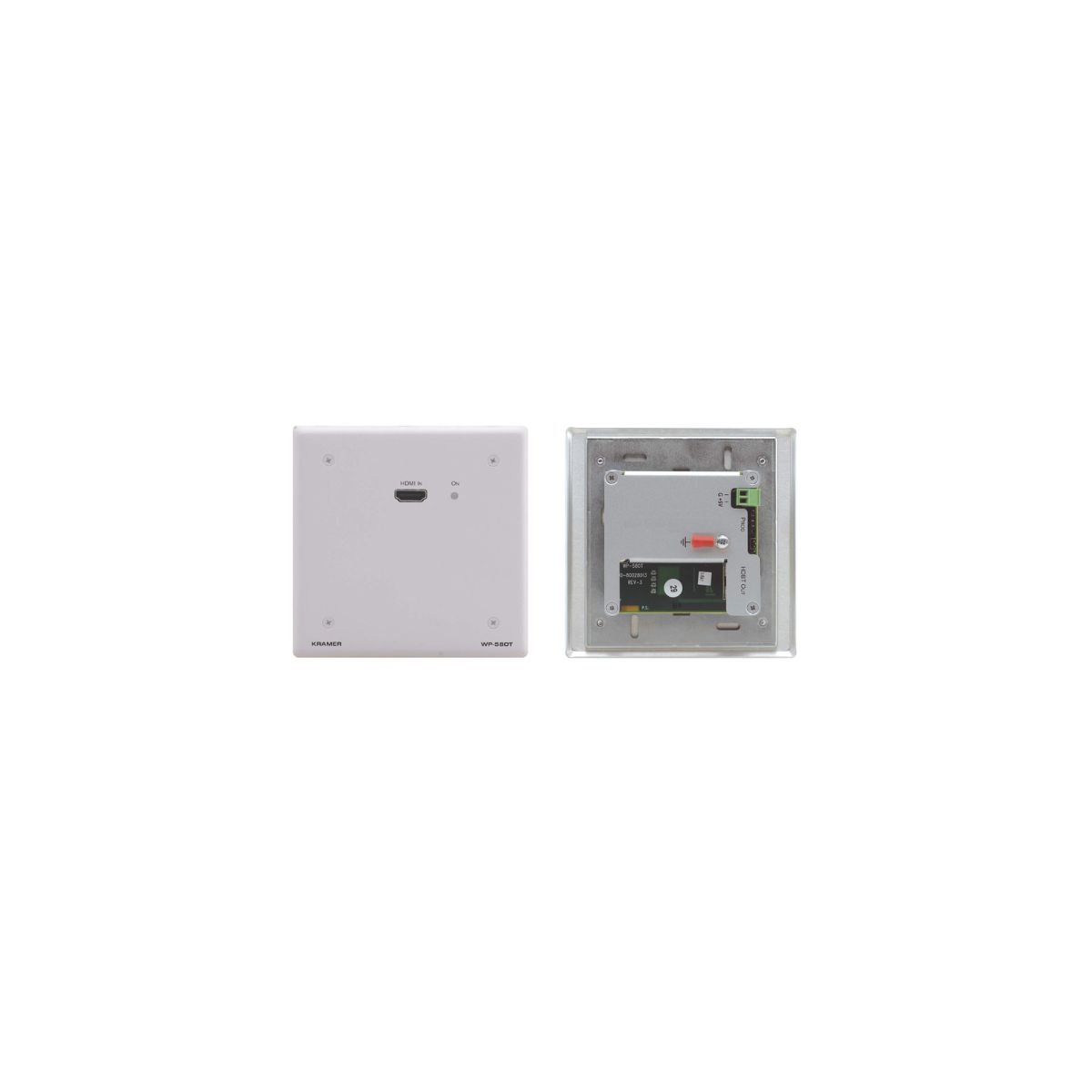

WP-580T

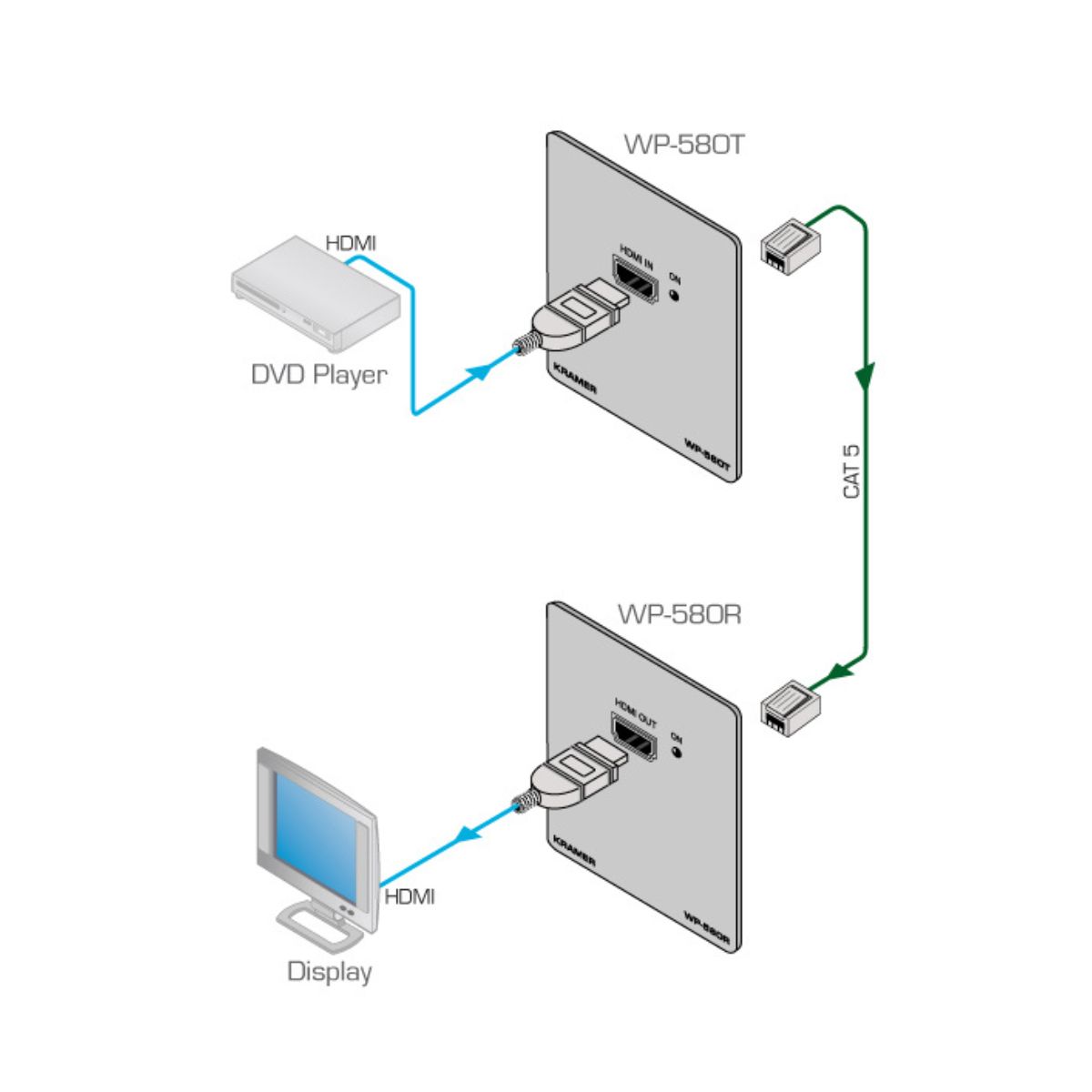

The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals. The WP−580T inputs the signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

Contact to Seller
  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
  •  HDTV Compatible.
  •  HDCP 2.2 Compliance.
  •  HDBaseT™ Technology.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
  •  3D Pass–Through.

INPUTS
  • 1 HDMI connector

OUTPUTS
  • 1 HDBaseT twisted pair RJ–45 connector

BANDWIDTH
  • 10.2Gbps (3.4Gbps per graphic channel)

Standards Compliance
  • Supports HDMI and HDCP 2.2

POWER CONSUMPTION
  • 5V DC, 380mA

INCLUDED ACCESSORIES
  • Power supply
