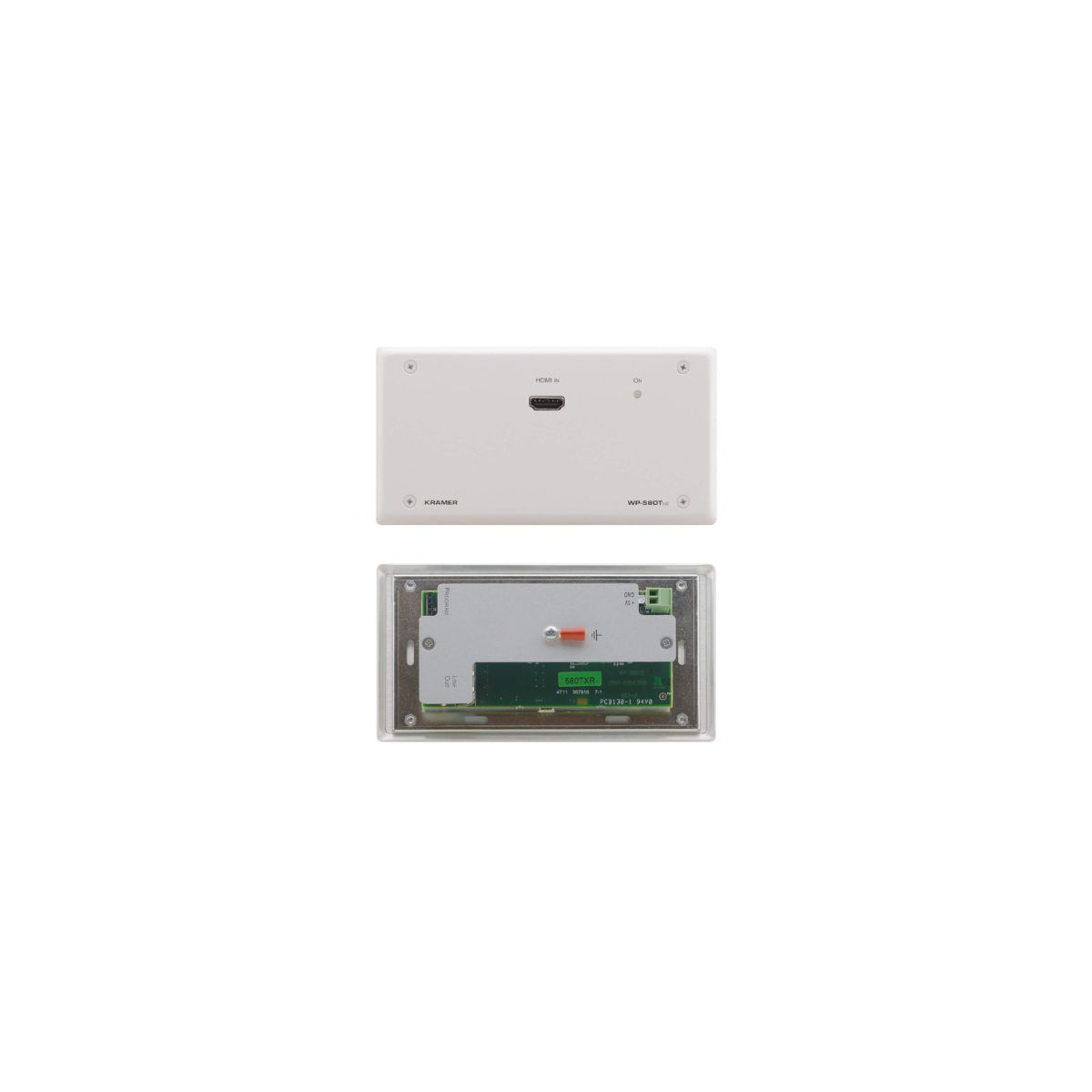

WP-580Txr

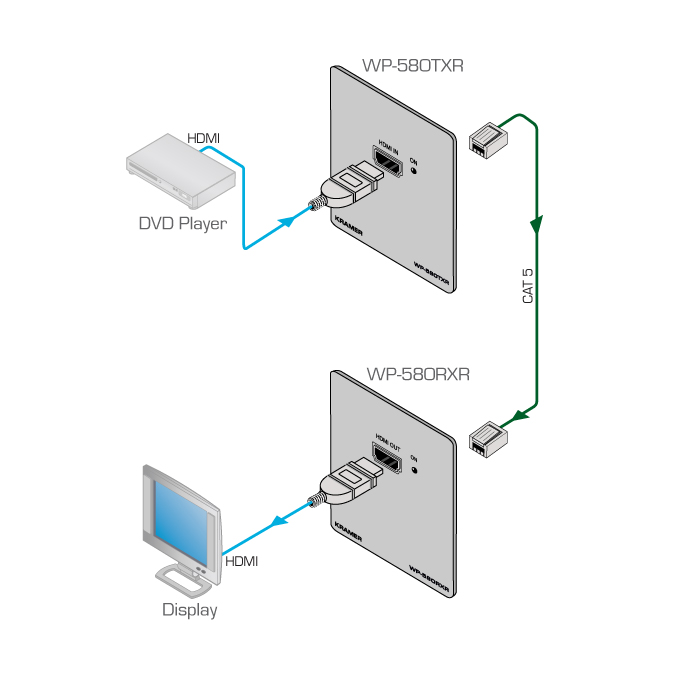

WP−580Txr is an extended range, HDBaseT wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals over twisted pair. WP−580Txr inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580Rxr receiver. The WP–580Txr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

Contact to Seller
  • Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
  •  HDTV Compatible.
  •  HDCP 2.2 Compliance.
  •  HDBaseT™ Technology.
  •  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.

INPUTS
  • 1 HDMI connector

OUTPUTS
  • 1 HDBaseT twisted pair RJ–45 connector

MAX. DATA RATE
  • 10.2Gbps (3.4Gbps per graphic channel)

Standards Compliance
  • Supports HDMI and HDCP 2.2

POWER CONSUMPTION
  • 5V DC, 390mA

OPERATING TEMPERATURE
  • 0° to 40°C (32° to 104°F)
