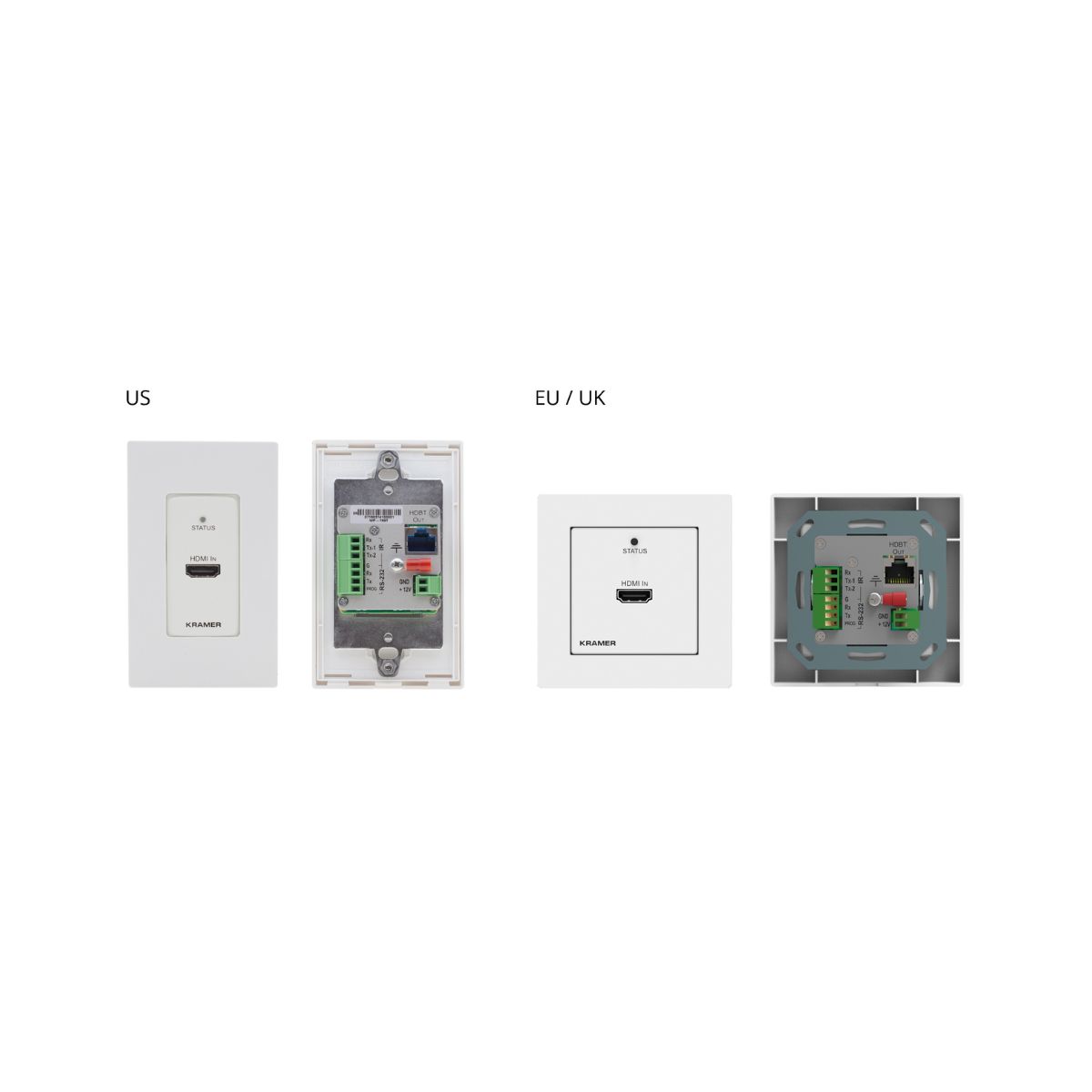

WP-789T

WP−789T is a high−performance, long−reach HDBaseT wall−plate transmitter for 4K@60Hz (4:2:0) HDMI and HDCP 2.2 signals over twisted pair. It converts the HDMI input signal into an HDBaseT signal and transmits it to a compatible receiver

Contact to Seller
  • HDBaseT 1.0 transmitter
  • Powered by PoE (Power over Ethernet/HDBaseT)
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K@60 (4:2:0)

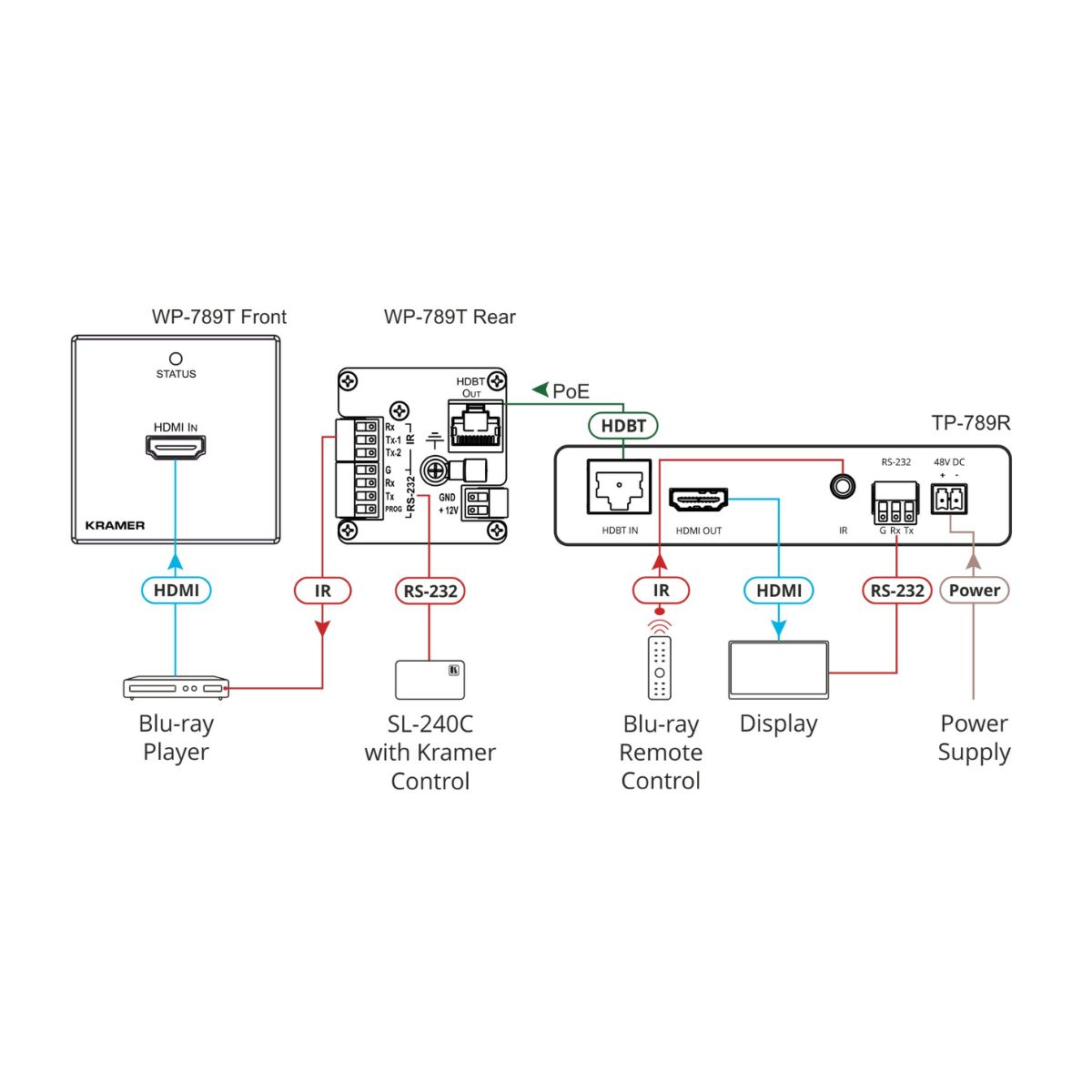

  • Control extension

Inputs
  • HDMI: On a female HDMI connector
  • IR: On 2–pin terminal block connectors (Tx–1 or Tx–2 and G) for signal extension over HDBT line

Outputs
  • HDBT: On a female RJ–45 connector
  • IR: On 2–pin (Rx (on IR), G) terminal block connectors for emitting the signal received from the HDBT line

Ports
  • RS-232: On 3–pin terminal block connectors (G, Rx, Tx) for signal extension over HDBT line
  • RS-232: On 3–pin terminal block connectors (G, Rx, PROG) for upgrading the FW

Video
  • Max Bandwidth: 10.2Gbps
  • Max Resolution: 4K@60 (4:2:0)
  • Compliance: HDCP 1.4 and 2.2 pass–through, EDID, and CEC pass-through

Extension Line
  • Up to 40m (130ft): At 4k@60 (4:2:0)
  • Up to 70m (230ft): At full HD (1080p@60Hz)

Extended RS-232
  • Baud Rate: 300 to 115200 baud
