WP-872xr

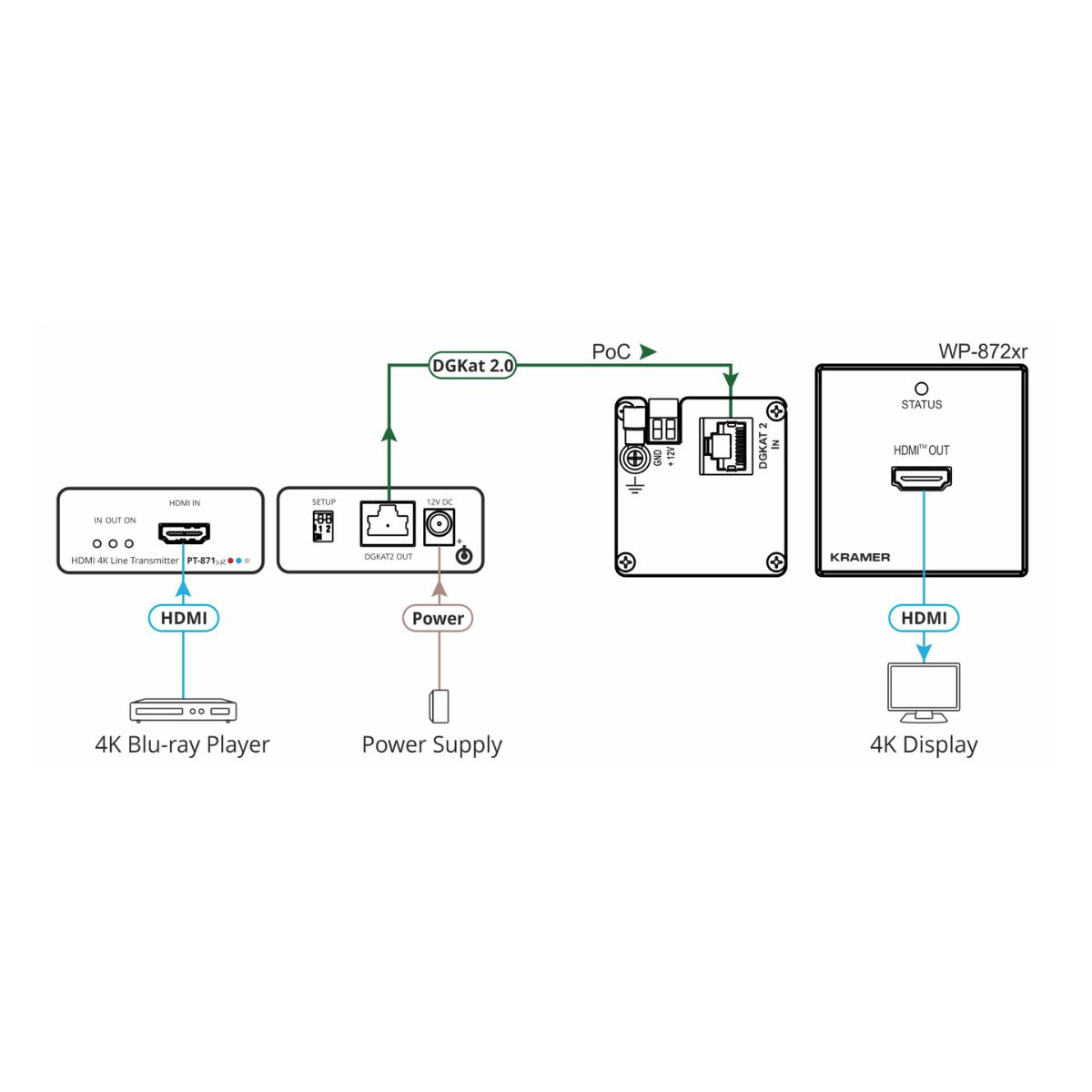

WP−872xr is a high−performance, long−reach DGKat™ 2.0 wall−plate receiver for 4K@60Hz (4:4:4) HDR, HDMI, HDCP 2.2 signals and power over twisted pair. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal. WP−872xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables. This wall−plate can either provide or accept power through PoC (Power over Copper) over the twisted pair cable

Contact to Seller

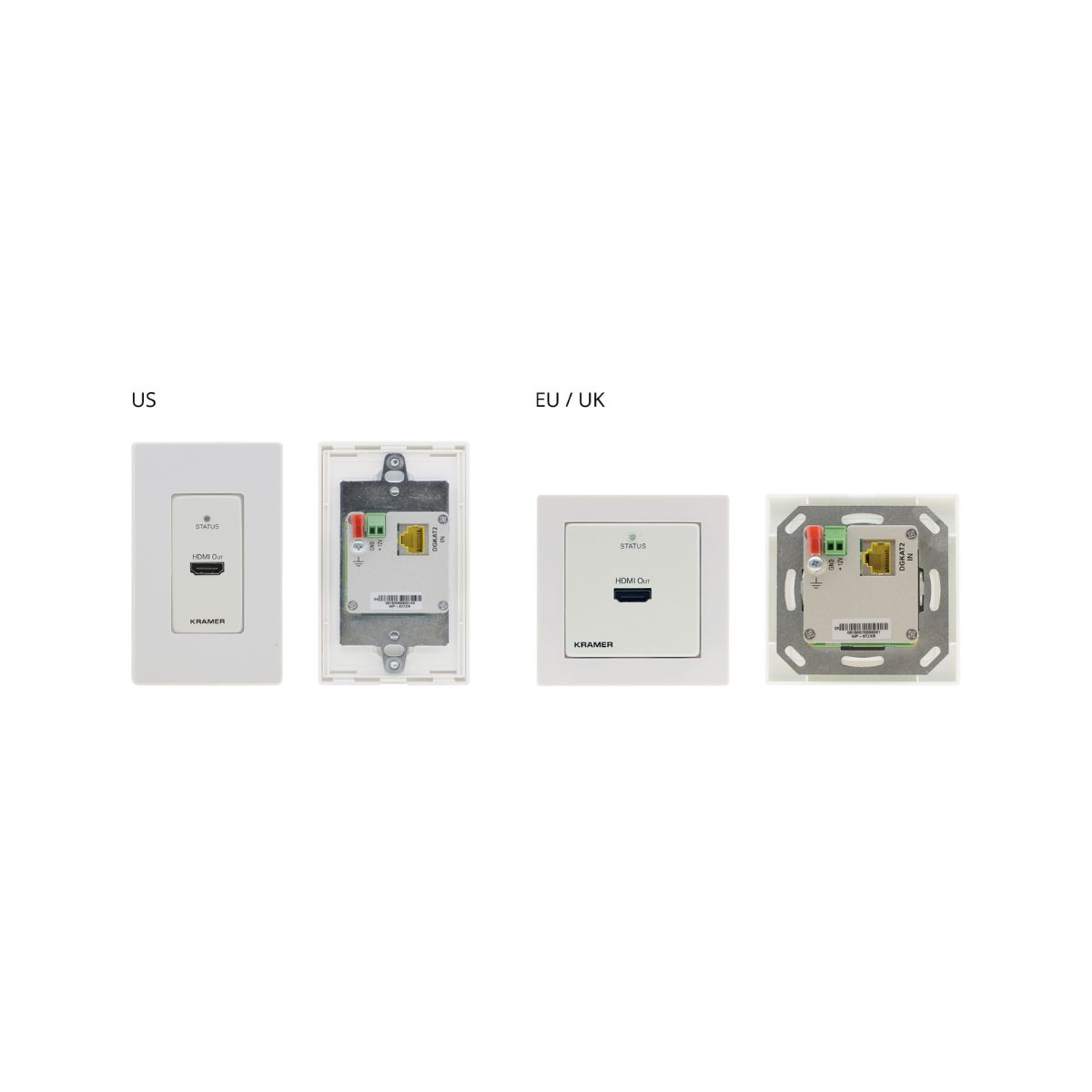

  • Compact, 1–gang DGKat™ 2.0 receiver
  • Up to 60m (200ft) at 4K@60Hz (4:4:4)
  • Up to 70m (230ft) at 4K@30Hz (4:4:4)
  • HDR, HDMI & HDCP 2.2 compliance
  • Bidirectional PoC Power

Inputs
  • 1 DGKat: On an RJ–45 female connector

Outputs
  • 1 HDMI: On an HDMI female connector

Video
  • Max Data Rate: 18Gbps (6Gbps per graphic channel)
  • Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
  • Standards Compliance: HDR10, HDCP 2.2

High Compression Reach Extension
  • Using Shielded UNIKAT Cables: Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)

Extension Line
  • Signal Compression: High compression level applied to >1080p signals
  • Compliance: DGKat 2.0

User Interface
  • Indicators: Power/connection
  • Controls: Dip–switches to define compression setup
