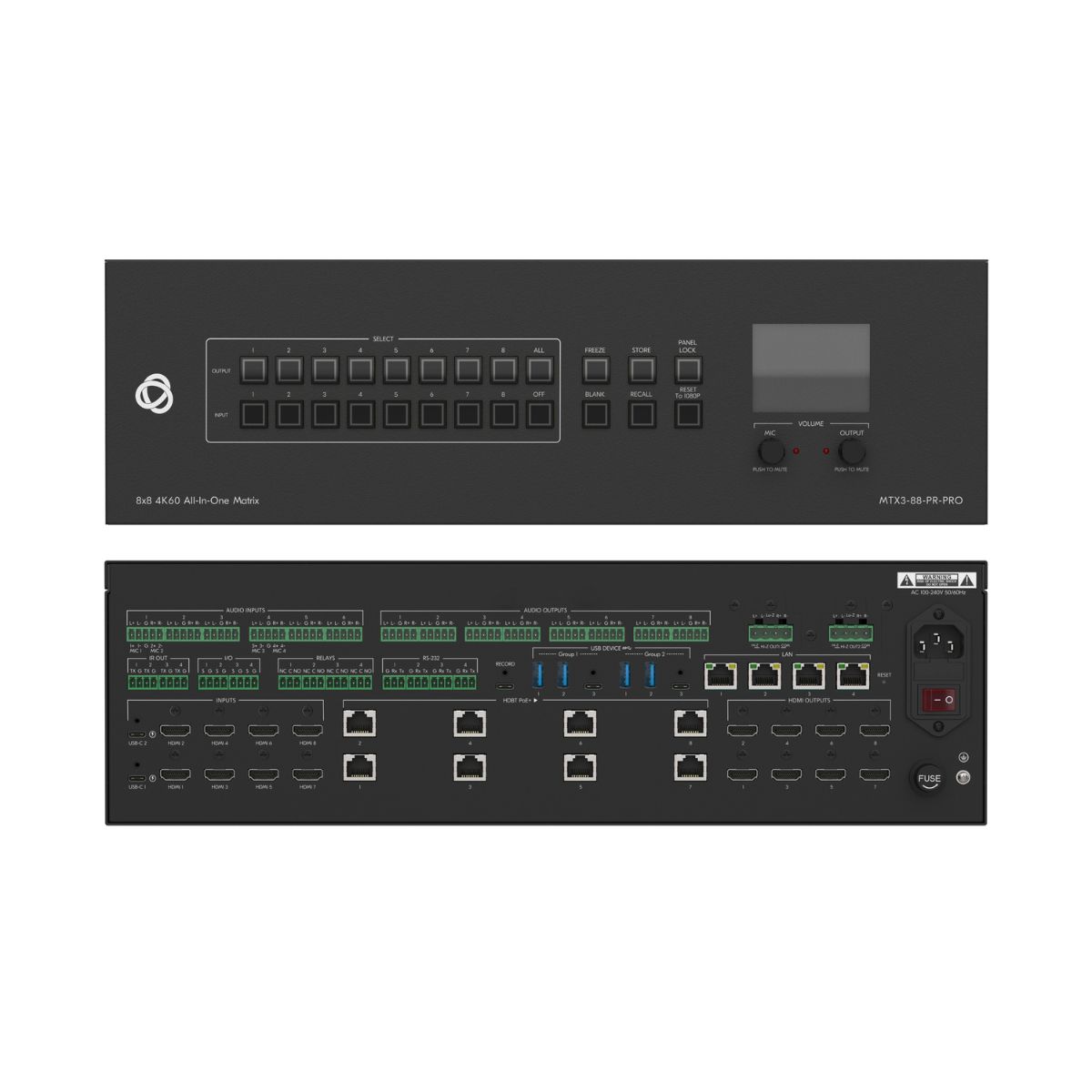

MTX3-88-PR-PRO

MTX3−88−PR−PRO is a high−performance video processing and fast−switching scaling matrix, with independent audio−visual (AV) and USB routing. The matrix has unmatched flexibility with USB−C, HDMI, HDBaseT 3.0 ports, air−casting inputs and network stream output.

Contact to Seller

Inputs
  • 2 Full-featured USB-C: On USB type–C female connectors
  • 8 HDMI: On HDMI female connectors
  • 1 Air-cast Wi-Fi: On a 2xRF antenna with female connectors
  • 4 Analog Mic or 2 Balanced Stereo Audio: On 3–pin terminal block connectors
  • 4 Analog Balanced Stereo Audio: On 5–pin terminal block connectors

Outputs
  • 8 HDMI: On HDMI female connectors
  • 1 H.264/5 Encoder: On a USB Type–C female connector for recording
  • 8 Analog Audio Balanced Stereo Line Level: On 5–pin terminal block connectors
  • 8 Dante Streaming Channels: On an RJ–45 female LAN connectors
  • 2 Power Amplifier Audio Stereo Line: On 4–pin large terminal block connectors

Interchangeable Inputs/Outputs
  • 8 HDBT: On RJ–45 female connectors

Video
  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution
  • Content Protection: HDCP 2.3
  • Compliance: HDMI 2.0b

Multi View
  • Window Layouts: PiP, Side–by–side, Split

Video Wall
  • Output Wall Layout: 2x2
  • Max Video Walls: 2



Download Product catalog
  • Premium All–in–one Matrix — High–resolution scaling matrix with multi–signal routing of wired user interfaces.
  •  Dual–screen USB–C routing capability allowing to connect any Alt–mode DP capable laptop with an extended desktop to be displayed on any selected pair of outputs.
  •  Eight HDBaseT 3.0 extension ports with PoE remote device powering. Each HDBaseT 3.0 port has configurable direction (input or output) and can extend multiple signals over twisted–pair copper infrastructures for unmatched system flexibility.
  •  Advance video processing capabilities with several Multiview presentation layouts and two independent video wall presentations.
  •  Rich set of audio interface options, including analog (line, microphone, and speaker), Dante, and USB audio devices.
