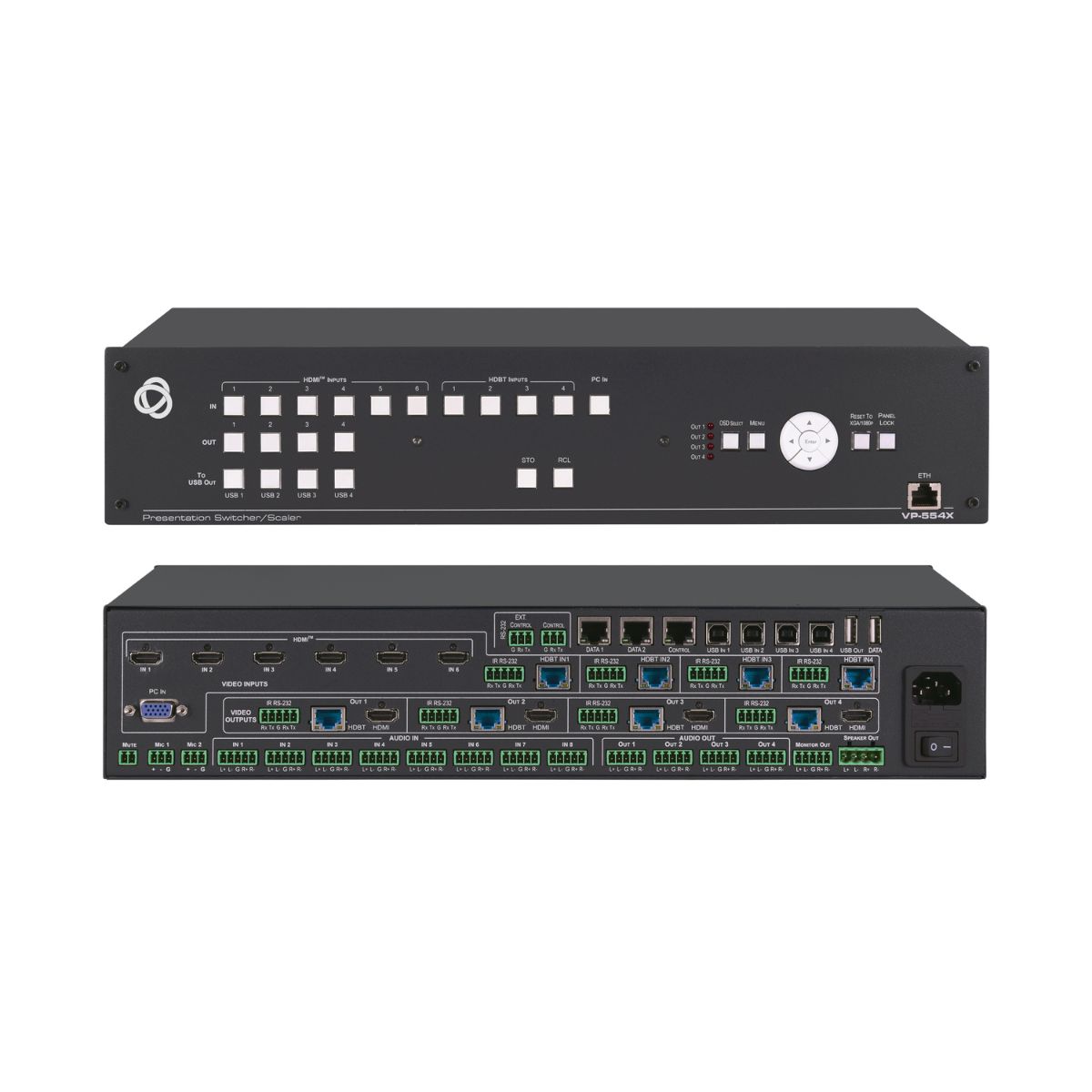

VP-554X

The VP−554X is a high−performance presentation scaler/switcher with 4 pairs of independent and scaled outputs. It includes multiple HDMI and HDBaseT inputs – supporting resolutions up to 4K – as well as a legacy VGA input, and each of the 4 outputs is mirrored on both HDMI and HDBaseT.

Contact to Seller

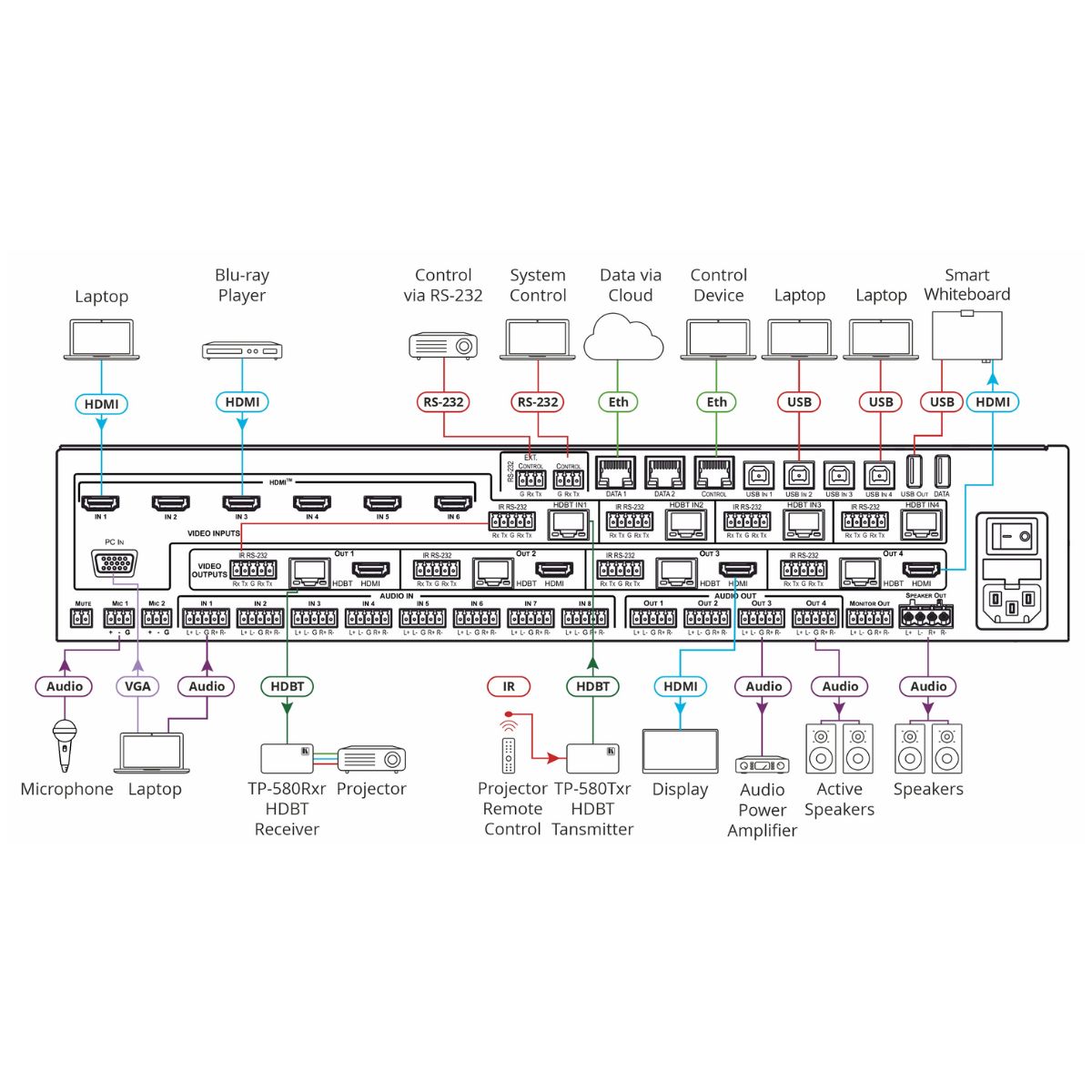

Inputs
  • 6 HDMI: On female HDMI connectors
  • 1 PC: On a 15–pin HD connector
  • 4 HDBT: On RJ–45 female connectors
  • 8 Stereo Analog Balanced Audio: On 5–pin terminal block connectors
  • 2 Unbalanced Mono Audio: On 3–pin terminal block connectors

Outputs
  • 4 HDMI: On female HDMI connectors
  • 4 HDBT (mirrored with each HDMI output): On RJ–45 female connectors
  • 5 Balanced Stereo Audio: On 5–pin terminal block connectors
  • 1 Stereo Balanced Audio: On a 4–pin large terminal block

Line Level Input
  • Impedance: 16.6kΩ
  • Maximum level: +14.7dBu (4.2Vrms)
  • Sensitivity: Full power @ +8.7dBu (2.1Vrms) for OUT =1.9Vrms

MICROPHONE LEVEL INPUT
  • Impedance: 47kΩ
  • Sensitivity: Full power @ — 37dBu (11mVrms) for OUT =1.9Vrms
  • Phantom Power: 48Vdc on/off per input

Extended Ethernet
  • Max Transmission Bandwidth: 100Mbps

Extended RS-232
  • Baud Rate: 300 to 115200



Download Product catalog
  • Pix–Perfect™ Scaling Technology
  • HDBaseT Input and Output Range — up to 100m at 4K@60 (330ft)
  • PoE support for each HDBaseT port
  • Minimal latency, Clean Switching Transitions
  • Rich Audio Processing
  • Selectable Microphone Talkover or Mix Modes
  • Built–in Power Amplifier
  • Built–in ProcAmp
  • 2x2 Videowall option
  • Front panel control with OSD (On Screen Display)
  • Control — RS–232, Ethernet with built–in Web pages
  • 4x1 USB Switcher
