VP-778

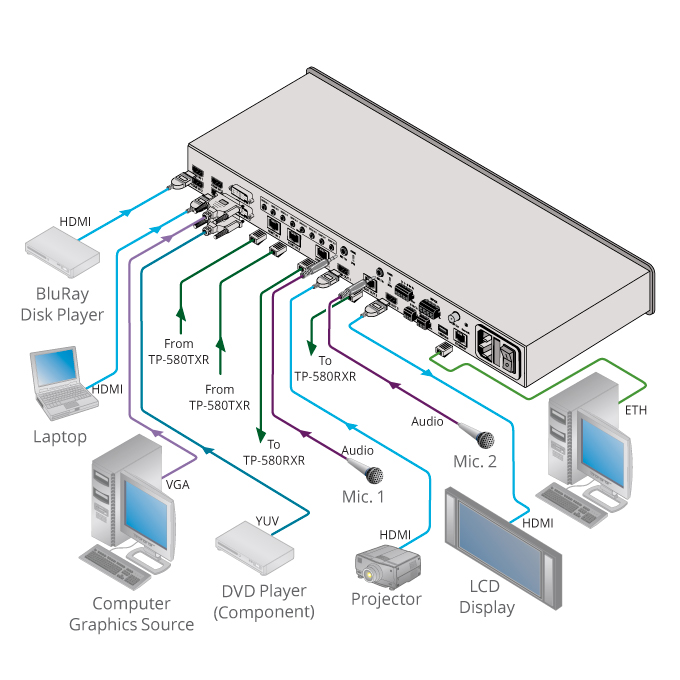

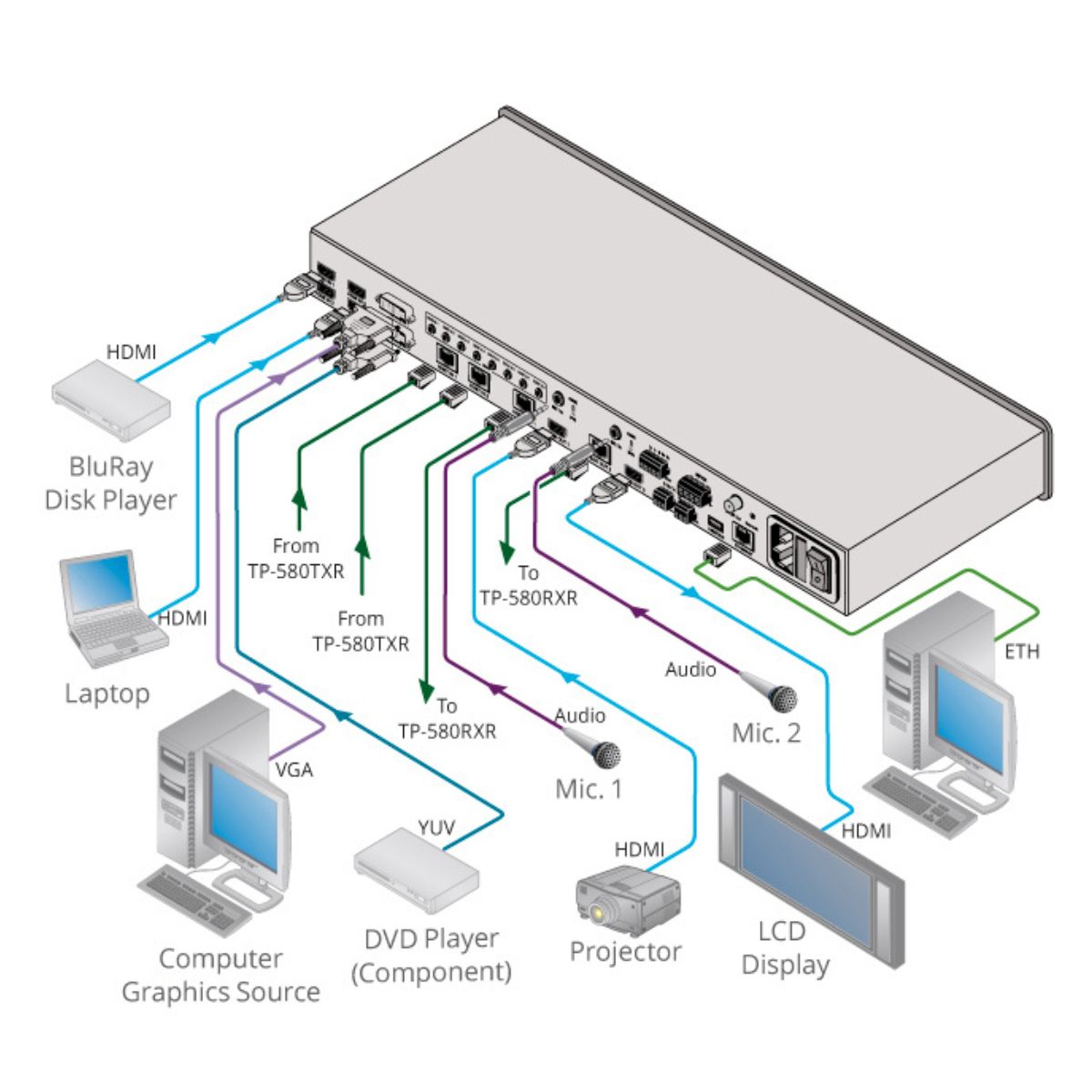

VP−778 is a presentation matrix switcher/scaler that can be configured as a single 4K output (4K@30Hz UHD [3840x2160]) or dual HD scaler with full PiP capabilities. It can scale to two independent HDMI outputs, each with a parallel HDBaseT output. VP−778 includes both analog and embedded audio inputs and outputs, and audio DSP features. It also features two microphone inputs and digital & analog balanced stereo and amplified speaker outputs. VP−778 can be controlled using built−in web pages, RS−23,2 and IR.

Contact to Seller

Inputs
  • 4 HDMI (deep color) connectors
  • 2 DVI–U (deep color) connectors (DVI, HDMI, PC, YPb Pr, CV)
  • 2 HDBT on RJ–45 connectors
  • 4 HDMI, 2 DVI–U, 2 HDBT on 3.5 mm mini jack connectors
  • 2 Mic unbalanced and high impedance on 6mm jack connectors (with selectable 48V phantom power)

Outputs
  • 2 HDMI (deep color) connectors
  • 2 HDBaseT on an RJ–45 connector
  • 1 S/PDIF digital audio on an RCA connector
  • 1 balanced stereo audio on a 5–pin terminal block connector
  • 1 stereo speaker output, 2x10W into 8Ω, on a 4–pin terminal block connector

Compliance with the HDMI Standard
  • Supports HDMI and HDCP

Operating Temperature
  • 0° to +40°C (32° to 104°F)

Storage Temperature
  • –40° to +70°C (–40° to 158°F)

Humidity
  • 10% to 90%, RHL non–condensing



Download Product catalog
  • Dual independent scalers with seamless switching
  • HDBaseT inputs and outputs
  • Max. single output resolution 4K30 UHD (3840x2160)
  • K–IIT XL™ PIP
  • 2 microphone inputs, stereo speaker output
  • Audio breakaway
  • Luma & chroma keying
  • Two programmable user buttons
  • Control options: IR RS–232, Ethernet with Web browser, front panel, and OSD
  • 4 HDMI Inputs, 2 HDBaseT inputs, and 2 DVI–U connectors with configurable input type — HDMI, VGA, Component, or Composite Video
