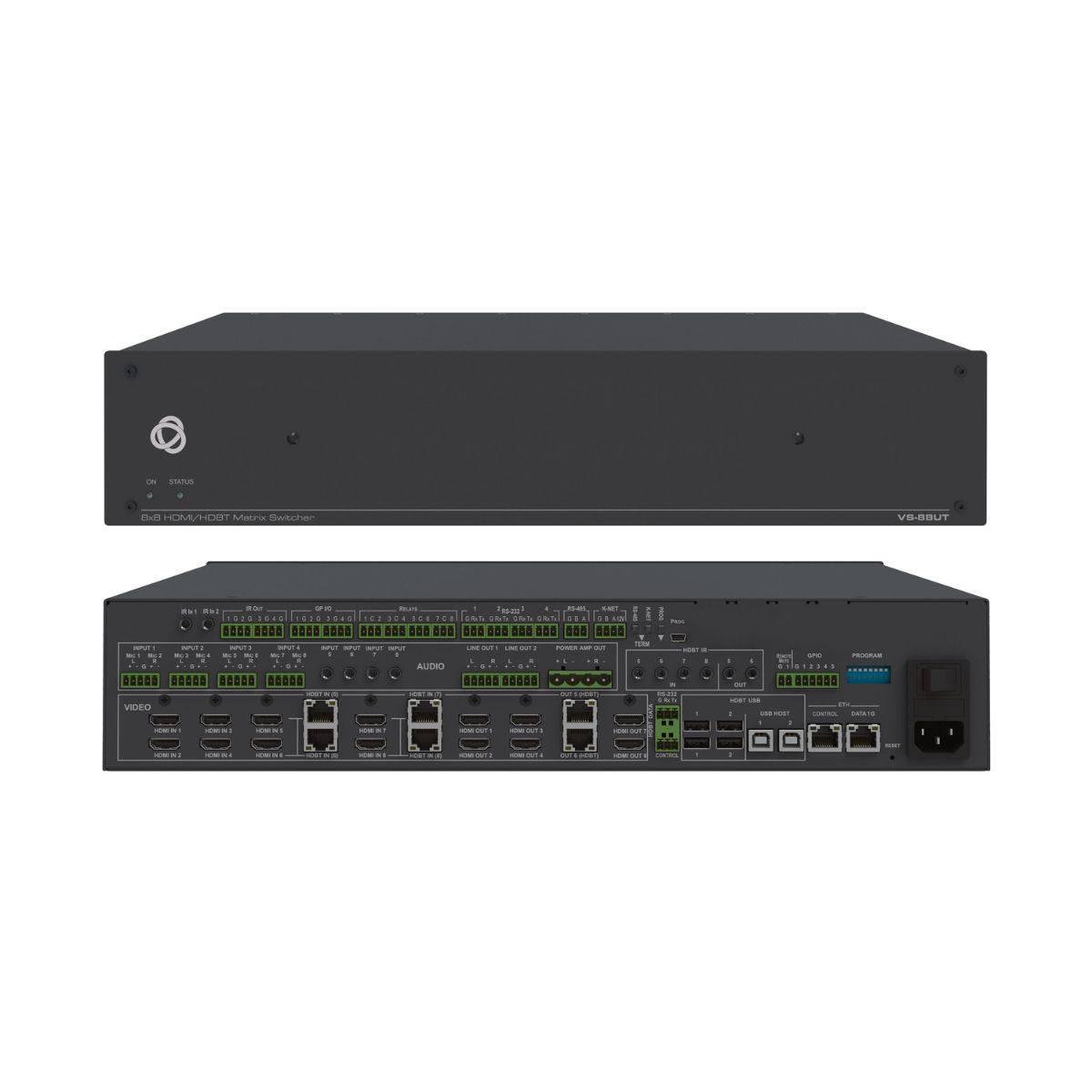

VS-88UT

Integrated range extension and an integrated control system master. The unit switches the video, embeds the audio, and outputs the signal to both an HDMI and an HDBaseT 2.0 with USB extension and PoE on the HDBaseT output ports. Outstanding audio support includes balanced stereo audio, unbalanced stereo audio, and de−embedded audio sources that output to embedded audio, balanced stereo audio, as well as a power-amplified audio output.

Contact to Seller

Inputs
  • 4 HDMI: On female HDMI connectors
  • 4 HDBT/4 HDMI (Selectable): On RJ–45/female HDMI connectors
  • 4 Unbalanced Stereo Audio: On 3.5mm mini jacks
  • 4 Balanced Stereo Audio/8 Balanced Mic (Selectable): On 5–pin/3–pin terminal block connectors
  • 4 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT
  • 2 IR (room controller): On 3.5mm mini jacks

Outputs
  • 6 HDMI: On female HDMI connectors
  • 2 HDBaseT: On female RJ–45 connectors
  • 2 Balanced Stereo Audio: On 5–pin terminal block connectors
  • 1 Stereo Speaker Output: On a 4–pin terminal block, 2x50W into 4Ω
  • 2 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT

Extension Line
  • Up to 100m (330ft): At 4K@60Hz (4:2:0)
  • Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
  • Compliance: HDBaseT 2.0

User Interface
  • Indicators: ON & STATUS LEDs
  • Configuration Switches: RS–485 Termination, RS–485 Termination, Programming

Video
  • Max. Resolution: 4K@60Hz (4:2:0) 24bpp resolution
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Content Protection: HDCP 1.4

Analog Audio
  • Max Vrms Level: 1
  • THD + Noise: 0.03% @1kHz at nominal level



Download Product catalog
  • Resolutions up to 4K@60Hz (4:2:0)
  • Data Rate up to 10.2Gbps (3.4Gbps per graphics channel)
  • Signal Extension up to 100m at 4K @60Hz (4:2:0)
  • Flexible Audio Extraction, Embedding, and Control
  • Programmable Master Room Controller
  • RS–232, RS–485, IR, GPI/O, and relay ports
  • PoE (Power over Ethernet) Provider
